Power requirements in modern industrial and telecom platforms tend to rise faster than the space available to support them. Designers are often stuck trying to increase output capability without expanding the mechanical envelope or introducing active cooling. The Cincon CFM600S series fits into this tension by offering a supply that holds a 600 watt rating inside a 3 by 5 inch format, giving teams a way to add headroom without redrawing the enclosure or airflow plan.
Why a Compact 600W Supply Matters in Real Applications

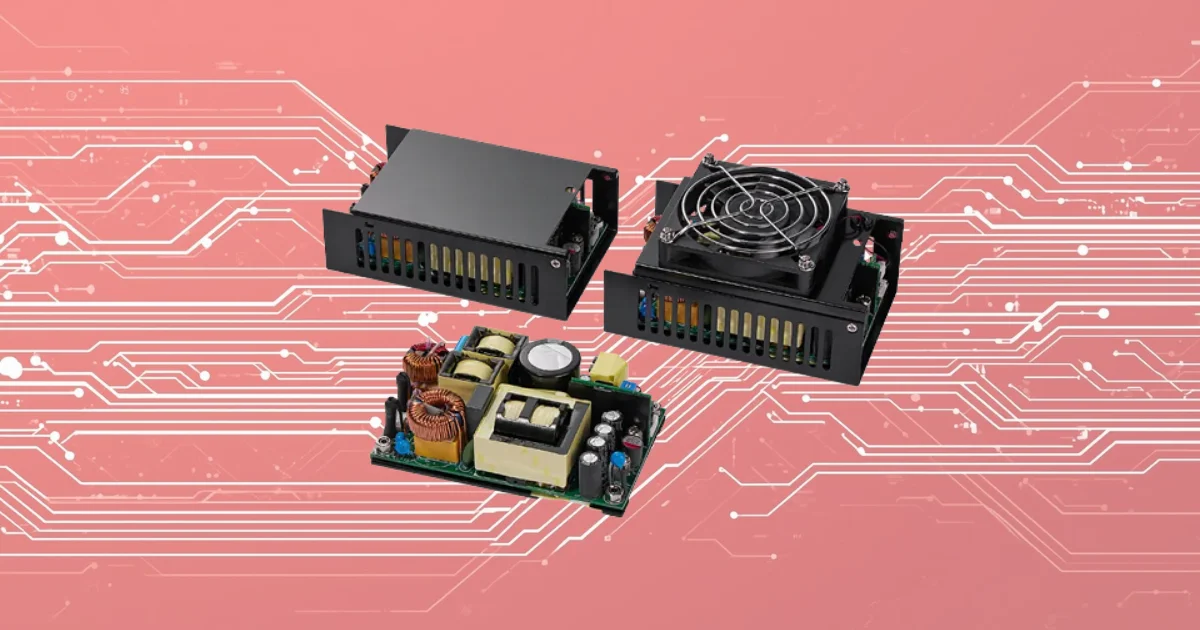

A common challenge in high density equipment is that thermal limits end up steering most of the design decisions. The CFM600S is built to deal with that directly. It can deliver more than 500 watts under natural convection, and the full 600 watt range becomes available once conduction paths or directed air are present. This provides predictable behavior across different installation styles. In practice, it means the same supply can sit inside a sealed chassis, mount to a baseplate, or operate with modest forced air while maintaining stable output. The mechanical options also allow teams to choose versions with a cover, a fan, or a bare baseplate depending on how the system is built.
How the Electrical Characteristics Behave in Operation
The electrical behavior of the series is shaped around wide deployment. The input window stretches from 80 to 264 volts AC, supported by active power factor correction. Nine output levels are available, and each includes signals for remote control and power good information, along with auxiliary rails for standby and fan supply. Efficiency reaches the mid ninety percent range, which eases thermal stress and helps the supply maintain consistent performance inside tight spaces. One detail worth noting is the very low inrush current at high line. It reduces stress on upstream breakers and input stages and can make a difference in systems with sensitive front ends. The operating temperature range spans from minus forty to plus eighty five degrees Celsius, which gives margin for outdoor equipment, industrial control, or platforms exposed to continuous thermal cycling.
Integration Behavior in Space-Constrained Systems
Real integration work often reveals how well a supply handles abnormal conditions. The CFM600S includes protections for overcurrent, overvoltage, overtemperature, and short circuit behavior, allowing it to tolerate common field faults without passing harmful transients into downstream loads. Earth leakage current remains low, which is important in systems where regulatory limits influence the enclosure design. Isolation levels are also high, supporting both electrical safety and signal robustness. For teams working on embedded systems or high density controllers, this combination reduces the need for additional mitigation circuits and keeps the power stage predictable over long operating periods.
How This Architecture Aligns With Current Power Trends
Across industrial automation, 5G infrastructure, embedded computing, and advanced control systems, demand continues to move upward while space and airflow remain constrained. The CFM600S lines up with that shift by enabling higher wattage inside a mechanically small footprint that can be cooled by conduction alone. This suits the increasing number of sealed or fanless architectures and reduces reliance on forced air designs that are harder to certify or maintain. As more equipment migrates toward compact, high performance nodes, supplies in this class become central to keeping systems both dense and thermally stable.
Learn more and read the original announcement at www.cincon.com
