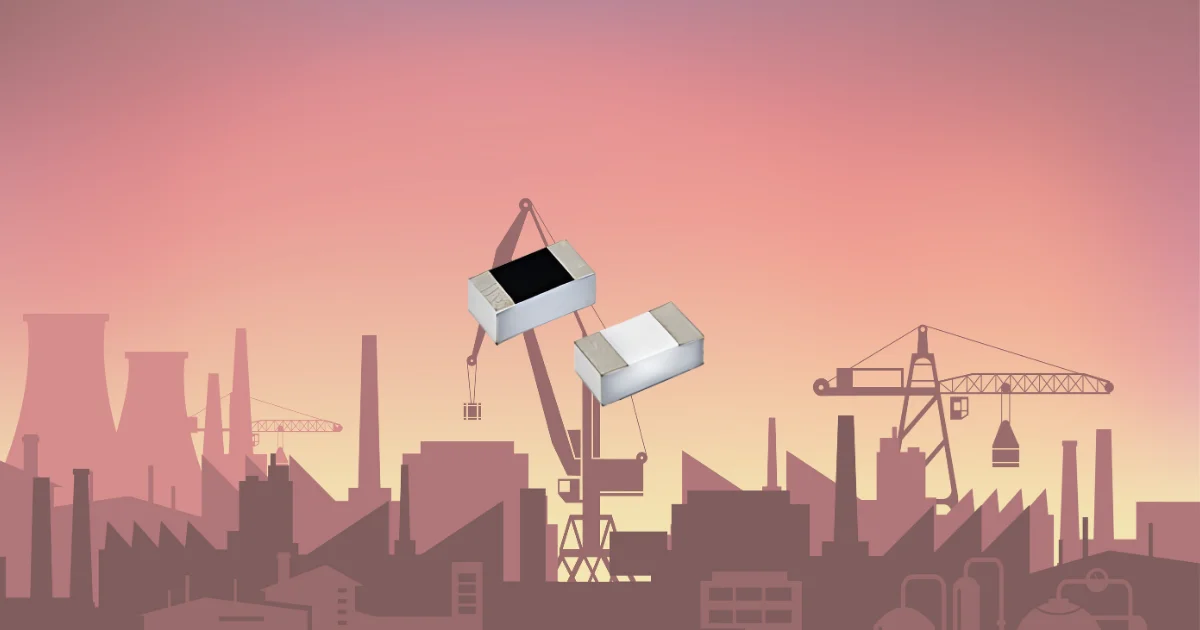

Board density always tightens faster than anyone expects. The schematic looks clean, the placement window looks reasonable, and eventually the routing process shows where the real limits sit. It usually happens around small passives long before processors or power devices create trouble. At 0201 scale, mechanical tolerances, solder wetting behavior and thermal drift behave differently enough that designers notice them only when a cluster of precision parts starts to pull the layout in awkward directions. The CRCW0201-AT e3 series from Vishay Intertechnology fits into that tension point more than it tries to fix a headline problem.
Resistor Geometry and Electrical Behavior at 0201 Scale
When the package drops to 0.6 millimeters by 0.3 millimeters, the resistor stops feeling like a generic commodity. The power rating remains small at a few hundredths of a watt, but the thermal mass is even smaller, so temperature excursions settle quickly. That rapid settling matters when the resistor is part of a sensing network near high frequency digital edges or sits in the periphery of a low noise analog front end. The operating voltage ceiling around a few tens of volts does not restrict typical use cases, but it does shape where these resistors realistically belong on mixed signal boards.
Resistance values span from very low ohmic ranges into the megohm domain, and tolerances in the one to five percent region stay stable enough for automotive use. Temperature coefficients in the few hundred parts per million mean drift is predictable rather than negligible. Predictable drift is often more useful than minimal drift in automotive or industrial controllers where calibration routines assume some movement over temperature and time.
Automotive Qualification and Practical Assembly Constraints
AEC Q200 qualification in a package this small is not trivial. Mechanical stress during reflow and vibration in automotive modules create failure mechanisms that do not show up in larger footprints. The protective coating used here is not a cosmetic feature. It affects how the part behaves when moisture cycling or thermal cycling create surface stress. Compatibility with vapor phase or reflow soldering also matters because assembly houses rely on consistent wetting and joint geometry across thousands of placements. In practice, that reliability influences how densely a cluster of 0201 components can be packed around microcontrollers, sensors or radio modules where routing space is already constrained.
Pure matte tin plating assists both leaded and lead free solder processes, which simplifies bill of process decisions for multi market hardware. That compatibility also reduces the need for special zones on the PCB where mixed finishes would otherwise complicate production.
Density Pressure in Modern Control and Communications Boards
As designers pack more functionality into smaller automotive and telecommunications modules, 0402 footprints start to collide with routing requirements. Moving to 0201 footprints shifts the density limit but introduces new considerations. Placement accuracy becomes more important. Trace widths between components shrink. Thermal considerations change because heat spreads differently when the mass of each resistor is so small. The CRCW0201-AT e3 series situates itself where these pressures converge rather than pretending to solve them outright.
These components do not change system architecture. They give engineers a small amount of breathing room when layouts become crowded, and that margin tends to matter in boards that operate across wide temperature ranges with strict reliability expectations.
Learn more and read the original announcement at www.vishay.com
