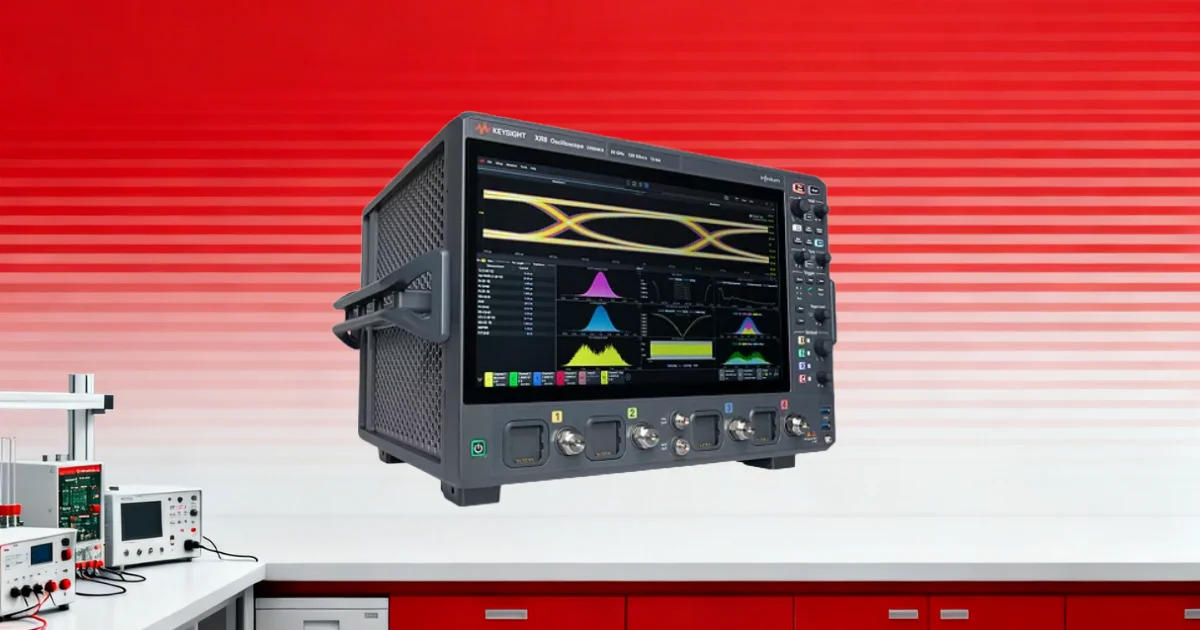

There is a moment in almost every high speed bring up where the simulation margins you trusted begin to feel a bit shaky. A lane that looked stable on paper suddenly shifts when the board hits full rate, and the eye you expected to hold its shape starts closing in ways that make you question the channel, the probe, or even your own assumptions. Digital timing work has been drifting toward that edge for years, and scopes often get dragged into acting as both microscope and referee. The next-generation Infiniium XR8 Real-Time oscilloscopes from Keysight feels like it was shaped with that pressure in mind rather than a checklist of capabilities, and it changes how quickly you move from suspicion to understanding.
Front-End Behavior Shaped for Jitter-Heavy Links
Modern interfaces like USB4v2, DisplayPort 2.1, and the newest DDR standards do not leave much room for measurement error. A small tilt in the front end or a fraction of added noise can mask the real reason a link keeps drifting out of spec. Keysight built a new ASIC for the XR8 front end and paired it with an ADC and DSP path that sits closer to the analog capture than older systems. You notice it when chasing timing irregularities because the noise floor is quiet enough that small jitter components stand out rather than disappear. The intrinsic jitter sits down near tens of femtoseconds, and the noise stays well under a few hundred microvolts at higher bandwidths, which alters how confidently you can trace what is upsetting a channel. It becomes less of a fight to extract signal behavior and more of a steady walk toward the part that is actually misbehaving.
Architectural Shift That Changes How Long Tests Run
One of the hidden delays in digital validation is not the measurement but everything that happens around it. Acquisition, processing, waiting for a sweep to finish, and watching a tool churn through data all stretch out the day. The XR8 pairs its front end with a digital engine that trims that quiet time down, and once it starts cycling through jitter decomposition or PAM analysis, the turnarounds feel shorter than expected. The updated Infiniium software handles multithread work and memory movement in a way that removes the sluggish pauses between captures. A compliance run that normally creeps along begins to feel more like a continuous loop rather than a stalled sequence. Hours start to replace days, not because of one large leap but because the entire path stops dragging.
Thermal And Mechanical Behavior That Fits Cramped Benches
Validation benches keep getting denser, and large instruments often end up placed at awkward angles just to make space. That placement usually blocks airflow or increases fan noise, neither of which helps when a scope has to run all day. Keysight reworked the XR8 chassis so it consumes less power and carries heat more cleanly, which lowers the acoustic profile enough that the unit blends into the room instead of dominating it. You feel the difference when placing the instrument close to a device under test because it no longer becomes an intrusive presence. It is easier to leave running overnight without worrying that thermal drift or noise will creep into a measurement session.
Software Flow That Aligns With How Engineers Actually Work
Oscilloscope interfaces rarely match the way engineers think through a problem. The XR8 software shifts toward something more practical, where waveform windows move the way your eyes move and the UI avoids forcing you into rigid patterns. Drag and drop adjustments simplify long sessions where you need to reorganize views repeatedly. Even the integrated SCPI recorder feels more useful than expected because it captures exploratory steps that later become part of an automated run. The software does not try to define the workflow. Instead, it leaves enough room to jump between discovery, analysis, and structured testing without feeling that you have changed tools.
Learn more and read the original announcement at www.keysight.com
