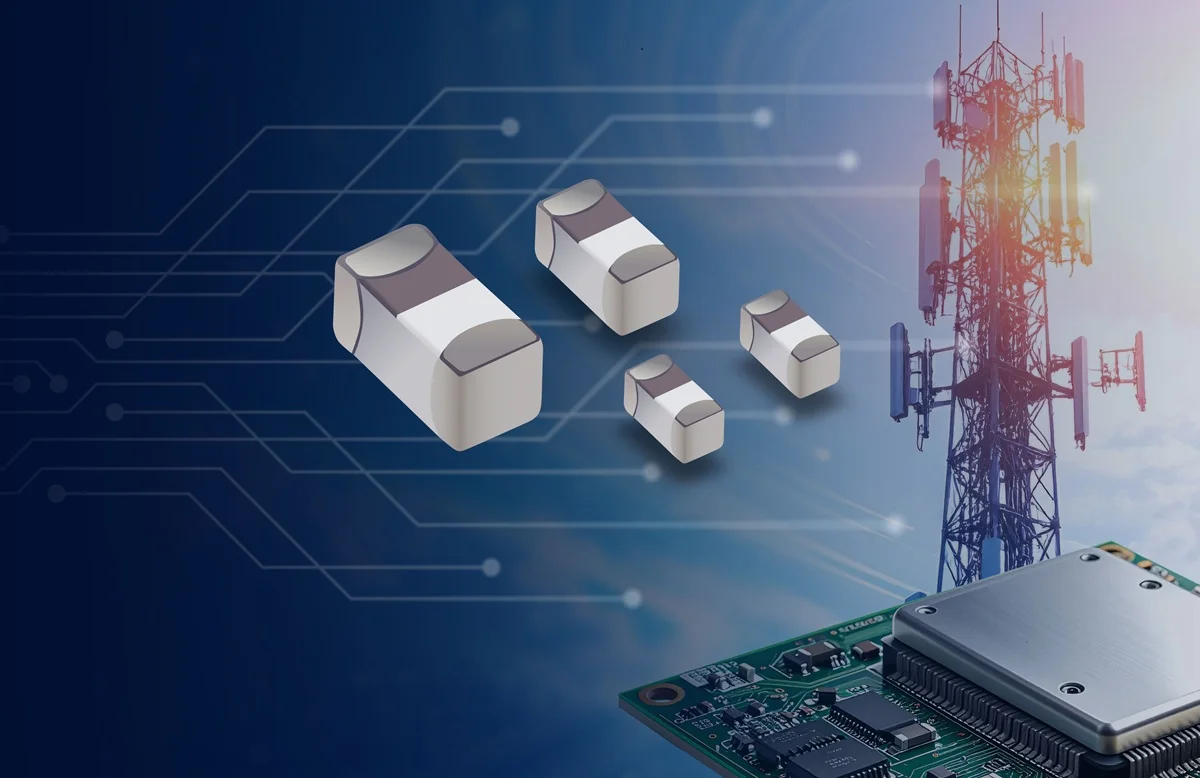

RF circuits often behave well until the frequency climbs high enough that a small inductor starts revealing its limitations. The point where a matching path or amplifier stage begins drifting is usually where parasitics, temperature, and package geometry show their real influence, especially as designs shrink. This is the environment the new multilayer chip inductors from Bourns are built for, with the CE0603G, CE0603M, CE1005Q, and CE1608Q series forming a group that targets the higher frequency region where stability becomes harder to guarantee and the smallest case sizes tend to struggle.
Monolithic Structures That Hold Their Behavior At High Frequency
The CE0603G, CE0603M, CE1005Q, and CE1608Q inductors rely on a monolithic multilayer structure that keeps the magnetic and conductive paths more controlled than a traditional wound or segmented design. When you push a circuit toward tens of gigahertz, the self resonant point becomes a hard boundary rather than a guideline. These inductors stretch that boundary upward so the usable range sits well above many standard chip inductors of the same case size. That extra headroom changes how matching networks behave and how amplifiers settle, especially when the signal path needs to stay clean across a wide bandwidth. It gives designers space to use the smallest footprints available without sacrificing the predictable shape of the impedance curve.
Small Geometries That Do Not Collapse Under RF Load
Shrinking passive components usually means accepting a reduction in current handling or a rise in losses. The new Bourns families reduce the footprint down to the smallest 0603 metric size, but the rated current sits in a range where they can still support active RF stages and compact power modules. That combination is unusual because inductors at this scale often shift under load or drift with temperature once the operating point climbs. These devices are built so the current rating, temperature movement, and high self resonant frequency do not fight each other. It lets RF paths in radios, radar front ends, and wireless modules remain predictable across their intended operating conditions even when the board temperature swings across a hundred degrees.
Consistency That Supports Dense RF Layouts
Dense RF sections punish components that do not maintain their characteristics over manufacturing spreads. Multilayer construction helps these inductors avoid the subtle variations that show up in wound or semi discrete designs. When the inductance tolerance stays tight and the high frequency behavior does not drift between batches, the surrounding circuits become easier to tune. This matters for amplifiers and mixers where the matching network depends on small inductors behaving the same way every time. It also matters in mobile devices where the board area is so constrained that even small deviation can upset an otherwise stable front end. The inductors fit into layouts where designers do not get a second chance to adjust once the product moves into volume.
A Passive Element That Supports High Speed System Growth
RF systems keep expanding into higher frequencies, wider bandwidths, and more crowded layouts. Passive components have to keep pace because any inconsistency at the inductor level can ripple into signal integrity issues that are hard to diagnose. The expanded Bourns series addresses this by focusing on high self resonance, controlled multilayer construction, and form factors that match the direction of modern RF and mobile designs. These parts help ensure that the limitations of the inductor do not dictate the limits of the circuit, giving engineers a more reliable building block as systems continue to scale.
Learn more and read the original announcement at www.bourns.com
