Actuation electronics in aircraft rarely end up simple. Sensors are scattered across hydraulic lines, motors respond to commands coming from several control loops, and fault monitoring tends to grow quietly in the background until the PCB is carrying more interface ICs than logic. Engineers working on flight control surfaces or guidance actuators eventually discover the same pattern. The sensing chain, motor control hardware, and monitoring circuitry expand piece by piece until the actuation board becomes an integration exercise rather than a control system.

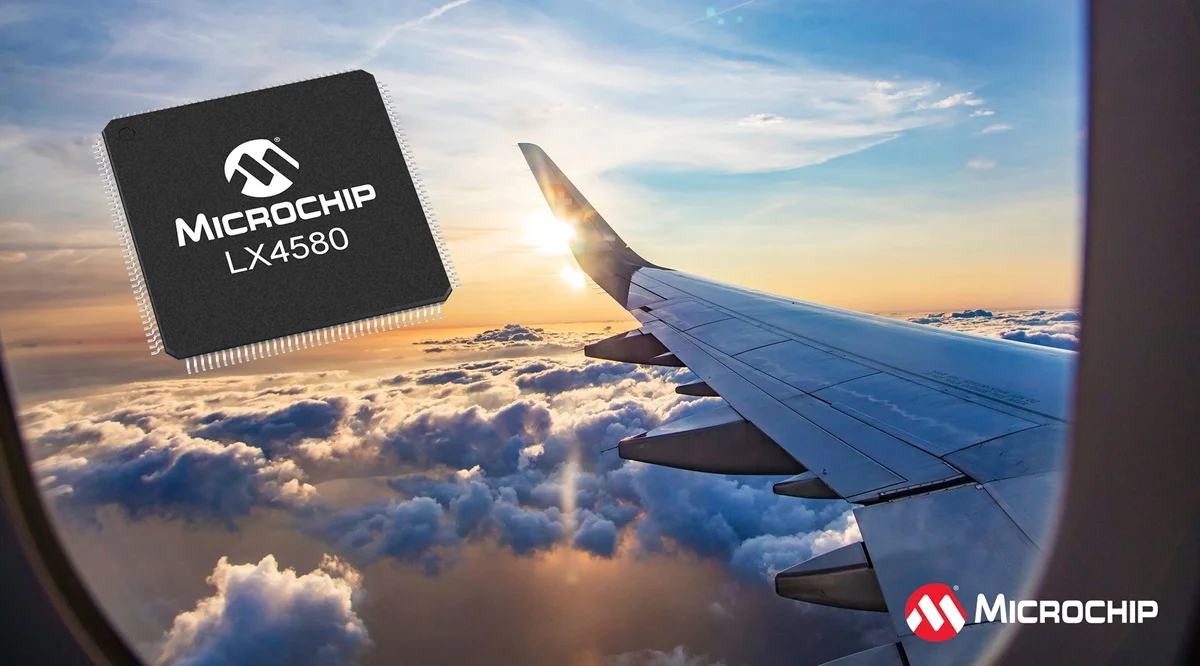

Microchip’s new LX4580 sits somewhere inside that problem space. It is a mixed signal device built to consolidate many of the sensing and control paths normally distributed across several components in aviation and defense actuation systems.
LX4580 Pulls Sensor Interfaces and Control Into One Device
Actuation systems rarely rely on a single measurement. Pressure readings may confirm hydraulic response, temperature sensing protects components that sit close to power electronics, and position feedback often arrives through resolvers or LVDTs that require dedicated interface circuitry. Each signal path tends to bring its own conversion stage and monitoring logic.
The LX4580 gathers many of those paths into a single device. The IC provides twenty four channels that can be used for a mix of sensing and control functions. Resolver and LVDT interfaces appear alongside Hall sensor inputs and current sensing paths, while pressure and temperature measurement signals can be captured through internal data acquisition resources. Two high speed SAR converters sit inside the device to handle sampling duties, which allows several measurements to be captured with consistent timing rather than drifting across multiple external converters.
Synchronization matters more than it first appears. Control loops in flight systems often depend on measurements that must represent the same moment in time. When several ADC devices sit on different parts of a board that alignment becomes harder to maintain.
Motor Control Paths Sit Alongside the Data Acquisition Chain
Actuation systems are not only observing motion. They are generating it. Motor drive outputs appear within the LX4580 so that control signals can move directly from the sensing stage into the actuation hardware. PWM outputs handle the drive signals while current feedback and sensor inputs feed information back to the control loop running on a host processor.
In some architectures the MCU manages the control loop while dedicated interface components perform sensing and monitoring. The LX4580 appears designed to sit beside that processor rather than replace it. Microchip documentation demonstrates the device paired with a SAMV71 microcontroller where the MCU executes the control algorithms and the mixed signal IC manages the sensors and measurement front end.
It is a familiar arrangement in aerospace electronics. Separate the deterministic measurement hardware from the firmware driven control layer. It simplifies certification work later.
Redundant Signal Paths Matter in Flight Hardware
Fault tolerance is not an optional feature once the electronics move into flight control systems. Signal paths often exist in pairs so that one channel can confirm the other is behaving correctly. That approach shows up inside the LX4580 architecture as well. Redundant data paths and monitoring circuits allow the system to continue operating even if a portion of the signal chain misbehaves.
Designers who have spent time debugging actuator boards know that redundancy changes how circuits are partitioned. Components are not only chosen for performance but also for how easily they can be monitored and isolated when something drifts out of specification.
Packaging also becomes part of the reliability discussion. The LX4580 arrives in a 144 pin LQFP package which keeps routing manageable while still allowing the number of signal connections required for multi channel sensing. Boards in these environments are rarely small, but every connector and harness removed from the design helps reliability.
Mixed Signal Integration Reflects the Direction of Flight Control Electronics
Aviation electronics have gradually moved away from distributed analog boards toward devices that absorb more sensing and conversion hardware internally. Part of the reason is physical. Aircraft manufacturers continue pushing toward More Electric Aircraft architectures where electrically driven actuators replace hydraulic systems. The electronics that drive those actuators then inherit the sensing responsibilities as well. Position feedback, temperature monitoring, current measurement, and diagnostic signals all need to land somewhere. Instead of scattering these interfaces across several devices, integrated mixed signal components are beginning to absorb more of that front end circuitry.
Engineers designing actuation control boards will still spend time on signal conditioning, layout discipline, and redundancy planning. Integration does not remove those steps. It simply moves some of the building blocks closer together on the silicon.
Learn more and read the original announcement at www.microchip.com
