Three-phase fan control is usually the better technical route, but not always the easier one to ship. For small BLDC systems, the extra tuning, software effort, and integration work can push engineers back toward simpler drive methods even when those cost efficiency and acoustic performance. Melexis is pushing against that with the MLX80339, a code-free motor driver built to make three-phase control easier to deploy in real products.
The MLX80339 is a code-free three-phase fan driver IC used for sensorless BLDC motor control in compact 12 V and 24 V systems. Melexis is not positioning it as a wide-open motor platform. The point is much more practical than that. It gives engineers a way to get the benefits of three-phase control without adding software development to projects that do not have the time, budget, or in-house expertise for it.
In a typical cooling fan, seat ventilation module, or small pump, the motor driver ends up affecting far more than just rotation. Startup behavior, noise, thermal performance, and power draw all come back to that section of the board. Once the product also has to stay compact and low cost, motor control quickly stops being a background detail.
Code-Free Setup Removes The Usual Friction
The most useful part of this launch is not the three-phase architecture by itself. Engineers already know that three-phase motor control can outperform simpler alternatives in noise and efficiency. The issue is that better control usually comes with more setup work.
Melexis says the MLX80339 uses pre-validated motor control logic on-chip and can be configured through its Start-to-Run environment. With the evaluation kit and Melexis Compact Master, the company says designs can be brought into operation in less than 15 minutes. That matters because startup tuning and stable motor behavior are often where development time disappears.
It also broadens who can realistically use a part like this. The MLX80339 makes more sense for lower-volume projects and teams without deep motor-control experience than a conventional embedded motor driver normally would.
Sized For Real Fan And Pump Hardware
Melexis rates the MLX80339 for up to 20 W at 12 V and 40 W at 24 V, with a configurable current limit up to 3 A. That puts it in the range for compact cooling fans, ceiling fans, automotive seat ventilation, pumps, and similar small motor systems where board space, efficiency, and acoustic behavior usually matter more than raw output power.
The device supports a 6 V to 26 V supply range and operates from -40 °C to 125 °C, with junction temperatures up to 150 °C. That gives it enough margin for tighter and hotter installations where the motor stage has to survive less forgiving operating conditions.
Practical Interfaces Matter More Than Fancy Ones

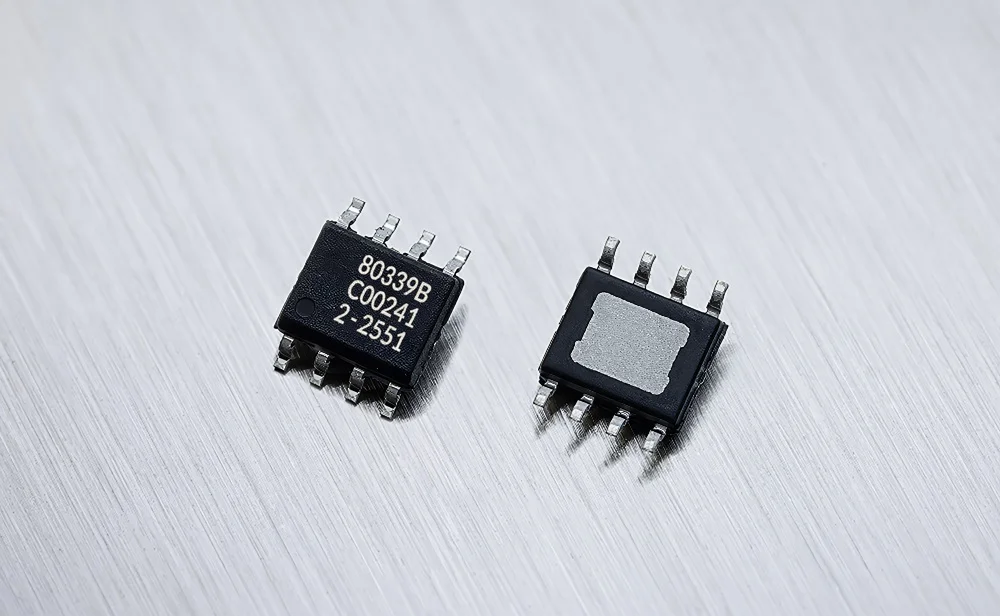

The SO8-EP package keeps the device aligned with the compact systems it is meant to serve, and the integrated protection features including under- and overvoltage, overcurrent, and over-temperature protection remove some of the usual defensive design work around small motor stages.
Just as important, Melexis has kept interface support practical. The MLX80339 works with legacy PWM-based fan control for easier drop-in replacement, while also supporting UART and I²C for systems that need diagnostics or multi-fan coordination. That makes it easier to use in both straightforward fan designs and more connected thermal control systems. The bigger point is simple enough: this part makes three-phase fan control feel less specialized.
Learn more and read the original announcement at www.melexis.com
Technology Overview
The MLX80339 is a code-free three-phase fan driver IC for sensorless BLDC motor control. It supports operation up to 20 W at 12 V and 40 W at 24 V, with a supply range of 6 V to 26 V and configurable current limiting up to 3 A. The device is intended for compact systems including cooling fans, ceiling fans, automotive seat ventilation, pumps, actuators, and related small motor applications.
Frequently Asked Questions
What is the MLX80339 used for?
The MLX80339 is used for sensorless three-phase BLDC motor control in compact fans, pumps, actuators, ceiling fans, and automotive seat ventilation systems.
What voltage and power range does the MLX80339 support?
The device supports supply voltages from 6 V to 26 V, with motor control up to 20 W at 12 V and 40 W at 24 V.
