YAGEO’s new SCF76X series goes after a part of power design that still causes far too many headaches once current starts climbing: three-phase EMI control. At lower power, common mode filtering can often be handled without too much drama. Push into industrial drives, HVAC systems, power conditioners, and inverter-heavy equipment, and that changes fast. The choke stops being a background component and starts affecting board space, thermal behavior, mechanical stability, and whether EMC compliance turns into a long week of rework.

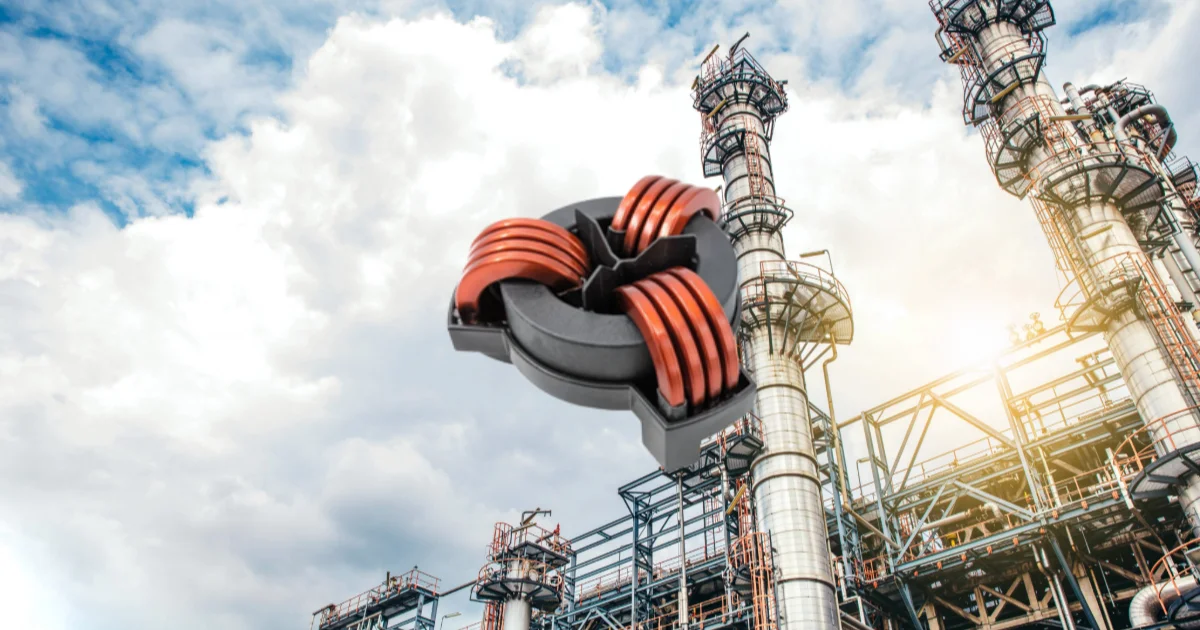

The SCF76X is a three-phase common mode choke used for conducted EMI suppression in high-current power systems. In a typical inverter or motor-drive platform, the choke sits on the power line side helping reduce common mode noise before it becomes an emissions problem somewhere else in the system. That sounds simple enough, but at these current levels, it usually isn’t.
Why High-Current EMI Parts Get Difficult Quickly
Once you move into three-phase hardware running serious current, EMI filtering stops being a neat schematic exercise. The current levels alone push many conventional ferrite-based options into an awkward spot where size, thermal loss, and filtering performance all start pulling against each other. You can still solve the problem, of course, but sometimes the answer is a bigger filter stage than you wanted, more board volume than you can spare, or a workaround that feels messy because it is.
That’s where the SCF76X series makes sense. It covers rated currents from 65 A to 110 A, with rated voltage up to 800 VAC/VDC, so it’s clearly built for systems that aren’t playing at the low end. YAGEO also puts this part in the kinds of applications where that matters most: industrial equipment, inverters, power supplies, robotics, air conditioning systems, and power conditioning hardware. None of those environments are especially forgiving once noise issues start showing up.
The Nanocrystalline Core Is Doing Most of the Heavy Lifting
The important detail here isn’t that the SCF76X is another common mode choke. It’s that YAGEO is using a nanocrystalline core to keep impedance high enough for meaningful common mode attenuation while current stays high. Ferrite still has its place, but once switching activity rises and power density follows it, ferrite-based filtering can start looking a bit thin unless you give it more room than the product can really afford. Nanocrystalline material changes that tradeoff. Higher permeability gives the choke a better shot at suppressing the noise you actually care about without forcing the rest of the filter stage to grow around it.
That doesn’t magically fix every EMC problem. It does, however, shift the design starting point in a more useful direction. And in real power electronics, that’s often enough to save time, board area, and a lot of second-guessing during compliance work.
Low Loss Still Matters More Than Marketing Copy
High-current chokes only stay attractive if they don’t create another problem somewhere else. The SCF76X series keeps DC resistance low, ranging from 0.27 mΩ to 0.97 mΩ depending on the part. That matters because EMI control that quietly adds avoidable conduction loss isn’t much of a win, especially inside enclosed industrial hardware where thermal margin disappears faster than people like to admit.
Inductance ranges from 0.35 mH to 0.77 mH, which gives designers some room to match the part to the system instead of forcing one filtering profile into every platform. The horizontal layout and 76 mm core diameter also tell you this part was built with physical stability in mind, not just electrical performance in a table.
Built For Systems That Don’t Run Cool Or Quiet
Industrial power hardware rarely lives in kind conditions. It gets mounted in cabinets, bolted into equipment frames, exposed to heat, and expected to keep working for years. So the SCF76X operating range of -40°C to +130°C is more than a brochure detail. It’s the minimum level of seriousness these applications need.
The UL 94 V-0 rated base and cap help on the materials side too, particularly in systems where safety reviews are just as annoying as EMC failures. None of this is glamorous, but that’s usually the point with good power components. The useful parts are often the ones that remove friction from the design instead of demanding attention for themselves.
The SCF76X isn’t a generic line filter part dressed up with industrial language. It’s a high-current three-phase choke built for power systems that have already outgrown lighter filtering approaches, and there are a lot more of those systems now than there were a few years ago.
Learn more and read the original announcement at www.yageo.com
Technology Overview
The SCF76X is a three-phase common mode choke series for conducted EMI suppression in high-current power systems. It uses a nanocrystalline core and supports rated currents from 65 A to 110 A, with rated voltage up to 800 VAC/VDC. In a system, it helps reduce common mode noise in equipment such as inverters, power conditioners, industrial drives, and HVAC platforms.
Frequently Asked Questions
What is the SCF76X used for?
It is used for common mode EMI suppression in three-phase power systems such as industrial inverters, power conditioners, robotics equipment, and HVAC hardware.
Why use a nanocrystalline core in this choke?
Nanocrystalline material provides high magnetic permeability, which helps deliver strong common mode noise attenuation at high current levels.
What current range does the SCF76X cover?
The series supports rated currents from 65 A to 110 A.
