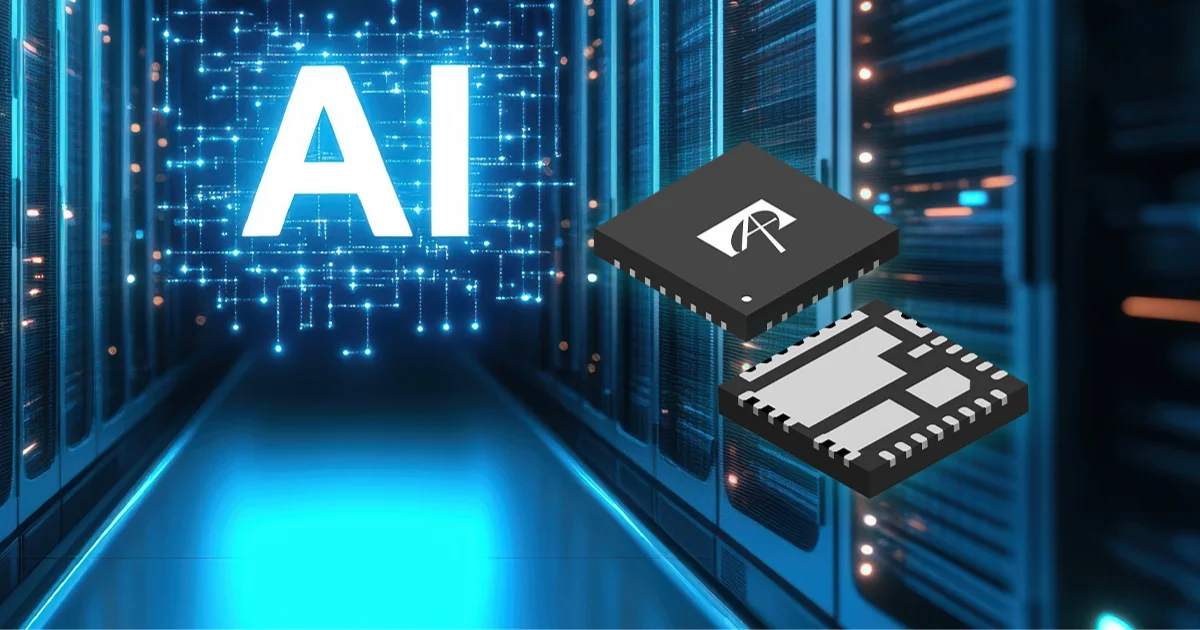

Alpha and Omega Semiconductor has introduced its SmartClamp DrMOS family, a set of integrated power stages built for the current demands seen in AI servers, data center hardware, and high-end GPUs. The devices focus on managing fast transient currents at the power stage level, where traditional controller-based protection can fall short.
The flagship AOZ53228QI sits at the center of the launch and is positioned for multiphase voltage regulator designs supplying modern processors and accelerators. AOZ53228QI is a DrMOS power stage used for regulating Vcore rails in high-current computing systems. In a typical server motherboard or GPU power tree, it operates within a multiphase buck converter, switching and regulating current into the processor core while maintaining protection against transient overload conditions.
Power Stage Protection Under Fast Transients
The SmartClamp family addresses a known issue in high-current designs where rapid load steps can push inductor current beyond safe limits before protection circuits react. In conventional architectures, overcurrent protection is handled at the controller, introducing propagation delay. Even short delays can allow current to overshoot significantly, particularly when inductors enter saturation. SmartClamp moves current limiting into the power stage itself. Each device monitors inductor current cycle by cycle using an internal current ramp, allowing it to respond within the switching cycle rather than after it. This reduces the likelihood of current runaway events that can damage high-side MOSFETs.
The devices support both positive and negative current limiting. Negative current protection becomes relevant in systems with aggressive load release, where reverse current can stress components during fast transients. The approach is designed to maintain stability across high di/dt conditions typical of AI accelerators switching between workloads.
Current Range And Device Options
The family spans several current and voltage options to cover both server and client platforms. Devices such as the AOZ53228QI, AOZ53262QI, and AOZ53263QI operate at 18 V and support current levels from 60 A to 80 A, targeting server and GPU applications. Higher voltage variants including AOZ53261QI, AOZ53267QI, and AOZ53268QI extend to 25 V operation with current ratings between 55 A and 70 A, aimed at gaming PCs and emerging AI PC designs.
Peak current limiting accuracy is specified at 10 percent, which is relevant for designers balancing protection margins with usable current headroom. In multiphase designs, this helps maintain phase balance and avoid early throttling under load.
Controller Compatibility And Integration
The SmartClamp devices are designed to integrate with standard constant-on-time and fixed-frequency PWM controllers, as well as Alpha and Omega Semiconductor’s own multiphase controller families. These include solutions compatible with Intel IMVP and AMD SVI3 specifications, aligning the parts with common CPU and GPU power architectures. By handling protection locally within each phase, the power stage reduces reliance on system-level timing coordination. This can simplify controller tuning and improve robustness when scaling to high phase counts. The devices are available in production volumes, with lead times around 12 weeks. The AOZ53228QI is priced at $1.40 in 1,000-unit quantities, positioning it within typical cost ranges for high-current DrMOS stages used in server-class designs.
Learn more and read the original announcement at www.aosmd.com
Frequently Asked Questions
What is SmartClamp DrMOS used for in a system?
It is used in multiphase voltage regulators supplying processor cores in AI servers, GPUs, and high-performance PCs.
What voltage and current ranges does the SmartClamp family support?
The family supports 18 V and 25 V operation with current ratings between 55 A and 80 A depending on the device.
Does the device handle overcurrent protection internally?
Yes, current limiting is implemented inside the power stage with cycle-by-cycle monitoring rather than relying only on the controller.
