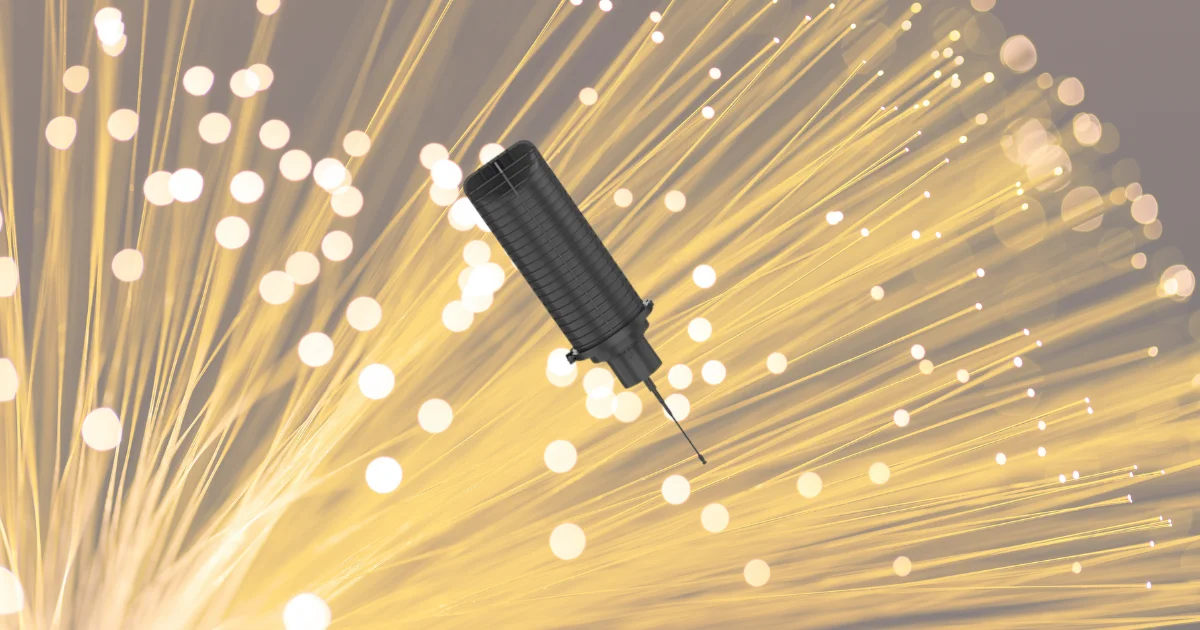

Panduit has introduced a new Fiber Optic Splice Closure portfolio aimed at outside plant fiber deployments where cable density, environmental sealing, and long-term serviceability are becoming harder to manage. The new dome-style closures are designed for both aerial and below-ground installations, supporting fiber distribution networks used in FTTH, broadband, and larger telecommunications infrastructure projects.
The closures protect fiber splices in outdoor network environments where moisture, dust, temperature variation, and repeated maintenance access can all affect long-term reliability. Panduit’s new system uses a gel-sealing approach instead of multiple grommet sizes, which simplifies cable entry and re-entry during installation or servicing. The Fiber Optic Splice Closures are outdoor fiber management enclosures used to protect and organize optical fiber splices in telecommunications and broadband infrastructure.
Higher Fiber Counts Continue Moving Into Outside Plant Hardware
One of the more noticeable parts of the launch is the supported fiber density. The medium closure supports up to 144 single fibers or 432 ribbon fibers, while the larger version scales to 432 single fibers or 1,728 ribbon fibers. Those numbers reflect how quickly ribbon fiber deployments are scaling in modern broadband infrastructure. Higher-density fiber counts are no longer limited to central offices or controlled indoor environments. Increasingly, that density is moving outward into field-deployed hardware where installation access, sealing reliability, and ongoing maintenance become more difficult.
As fiber counts rise, physical management starts becoming just as important as the optical side of the network itself. Routing space, splice organization, tray access, and re-entry procedures can all affect deployment speed and long-term maintainability once large ribbon bundles are involved.
Gel-Sealing Design Simplifies Installation And Re-Entry
Panduit’s closure design uses six cable entry ports alongside a reusable and fully re-enterable sealing structure. The company says the gel block removes the need for multiple grommet sizes, which reduces the amount of sealing hardware installers need to manage during deployment. That may sound like a relatively small change, but outside plant installation work is heavily affected by setup time and servicing complexity. Fiber closures are not always installed once and forgotten. In many deployments they are reopened repeatedly during network expansion, repair work, subscriber additions, or cable replacement.
The ability to reopen a closure without replacing sealing components can simplify maintenance while reducing the chance of inconsistent resealing after field servicing.
Modular Tray System Supports Different Network Builds
The new portfolio also includes modular splice trays, splice modules, grounding accessories, mounting hardware, storage systems, and termination kits. Panduit says the platform is intended to support both new installations and ongoing network upgrades where configurations may change over time.
Different outside plant deployments place very different demands on splice hardware. Aerial fiber installations, underground conduit systems, and neighborhood FTTH cabinets all introduce different space, environmental, and servicing constraints. A more modular tray structure gives installers flexibility to adapt the closure layout around the deployment instead of forcing every build into the same internal arrangement.
Panduit has also expanded its outside plant portfolio with additional PLC splitter options, including new 2x4, 2x8, 2x16, and 2x32 configurations available in either pre-connectorized or bare fiber versions.
Learn more and read the original announcement at www.panduit.com
Technology Overview
Panduit’s Fiber Optic Splice Closures are dome-style outdoor fiber management enclosures designed for aerial and underground fiber deployments. The closures support up to 432 single fibers or 1,728 ribbon fibers depending on model size and use a reusable gel-sealing system with six cable entry ports. The platform also includes modular splice trays, grounding accessories, and mounting hardware for FTTH and broadband infrastructure deployments.
Frequently Asked Questions
What are Panduit’s Fiber Optic Splice Closures used for?
They are used to protect and organize fiber optic splices in outdoor telecommunications and broadband infrastructure, including aerial and underground FTTH deployments.
How many fibers do the new Panduit splice closures support?
The medium closure supports up to 144 single fibers or 432 ribbon fibers, while the larger model supports up to 432 single fibers or 1,728 ribbon fibers.
What is the advantage of the gel-sealing system?
The gel-sealing design removes the need for multiple grommet sizes and allows the closure to be reopened and reused during maintenance or network expansion work.
