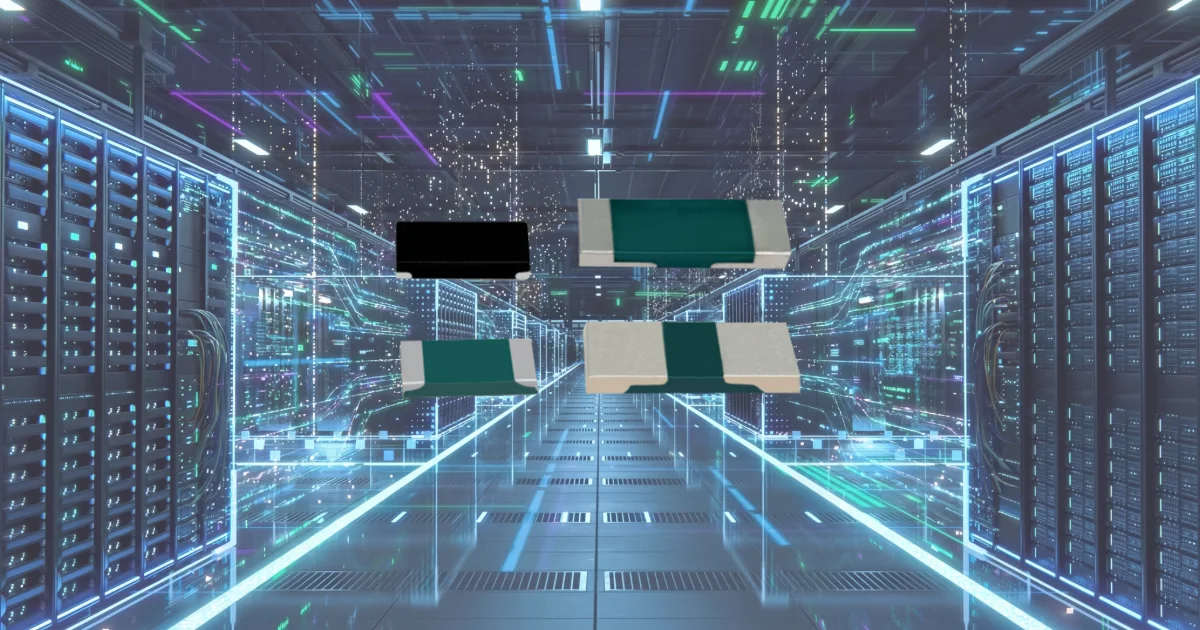

YAGEO has expanded its current sensing portfolio with the PK Series, a family of two-terminal metal current sense resistors designed for high-power applications. Available in 1206 and 2512 case sizes, the series combines power ratings of up to 5 W with resistance values as low as 0.5 mΩ.
The resistors are intended for applications requiring accurate current measurement under high-current operating conditions, including AI servers, automotive electronics, power systems and alternative energy equipment.
Designed for High Current Operation
The PK Series is available in 1206 and 2512 case sizes with power ratings from 2 W to 5 W. Resistance values range from 0.5 mΩ to 20 mΩ, while the operating temperature range is -55°C to 170°C. Temperature coefficient options of 50 ppm/°C and 100 ppm/°C are available.
YAGEO says the metal plate construction improves heat dissipation under high-current conditions. The company also states that the resistors can deliver up to 5 W while maintaining a maximum surface temperature of 100°C.
Automotive and Industrial Applications
The PK Series is AEC-Q200 qualified and incorporates an anti-sulfuration design for improved reliability in sulfur-containing environments. According to YAGEO, the resistors are suitable for AI servers, automotive electronics, alternative energy systems and industrial power equipment where accurate current sensing and thermal performance are required.
The PK Series current sense resistors are available now from YAGEO.
Learn more and read the original announcement at YAGEO's website.
Technology Overview
Current sense resistors generate a small voltage proportional to the current flowing through them, allowing electronic systems to monitor current, measure power consumption and detect overload conditions. Low-resistance metal current sense resistors minimise power loss while maintaining measurement accuracy in high-current applications.
Frequently Asked Questions
What is the YAGEO PK Series?
The PK Series is a family of two-terminal metal current sense resistors designed for high-power current sensing applications.
What specifications are available?
The series offers power ratings from 2 W to 5 W, resistance values from 0.5 mΩ to 20 mΩ, operating temperatures from -55°C to 170°C, and temperature coefficients of 50 ppm/°C or 100 ppm/°C.
What applications is the PK Series designed for?
Typical applications include AI servers, automotive electronics, industrial power systems and alternative energy equipment.
