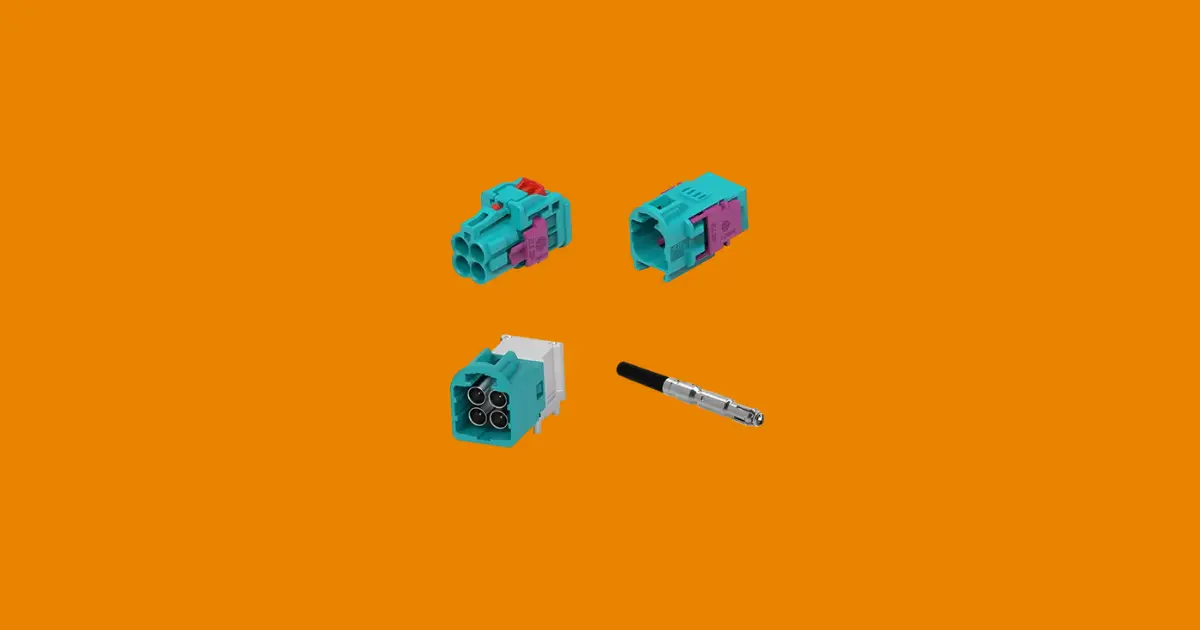

TE Connectivity Launches MINI FAKRA System for 24 Gbps Automotive Links

TE Connectivity’s compact automotive connector system supports RF performance up to 9 GHz and data rates up to 24 Gbps, with anti-stubbing features and controlled insertion force for high-speed vehicle applications.

The TE MINI FAKRA system is aimed at ADAS, surround-view and front-facing cameras, V2X communication, antenna modules, and digital cockpit and infotainment systems.

Designed for space-constrained vehicle applications, the connector is compatible with established Mini FAKRA interfaces and cavities. TE has also focused on mating robustness, with features intended to protect the contacts during assembly and provide more controlled insertion.

The 9 GHz RF performance and 24 Gbps data rate are subject to approved product validation and the final configuration.

Up to 24 Gbps in a Compact Automotive Format

The MINI FAKRA system supports data transmission rates up to 24 Gbps alongside RF performance extending to 9 GHz.

TE is positioning the connector for automotive systems where high-speed data links need to be packaged into limited space, including camera systems, ADAS, V2X links and antenna modules. The same connector system can also be used in digital cockpit and infotainment applications.

Compatibility with established Mini FAKRA interfaces and cavities means the new system can be integrated into designs already using the format rather than requiring a different connector architecture.

Mating Protection for Automotive Assembly

Alongside the electrical performance, TE has added mechanical features intended to make the connector more robust during vehicle assembly.

Anti-stubbing features reduce the risk of contact damage during mating, while controlled insertion force supports more consistent connection during installation. The connector is also designed to protect contacts against damage as the system is assembled.

That combination of compact packaging, high-speed performance and mating protection is aimed at automotive systems where several data connections need to be installed reliably within limited space.

The TE MINI FAKRA connector system is available globally.

Learn more and read the original announcement at te.com.

Technology Overview

TE Connectivity MINI FAKRA is a compact automotive high-speed data connector system supporting up to 24 Gbps and RF performance up to 9 GHz, subject to validation and configuration. It is compatible with established Mini FAKRA interfaces and includes anti-stubbing and controlled insertion-force features for automotive assembly.

FAQs

What data rate does TE MINI FAKRA support?

TE specifies data rates up to 24 Gbps, subject to approved product validation and the final configuration.

What applications is the connector designed for?

Applications include ADAS, surround-view and front-facing cameras, V2X communication, antenna modules, digital cockpit systems and infotainment.

Is TE MINI FAKRA compatible with existing Mini FAKRA interfaces?

Yes. TE says the system is designed for compatibility with established Mini FAKRA interfaces and cavities.
