YAGEO Film Capacitors Target EMI Stress in WBG Power
Wide-bandgap power stages have made a lot of older filter assumptions look a bit too comfortable. Once SiC and GaN devices start switching hard, the passive parts around them stop being background components and start taking real punishment from dV/dt, ripple current, and repeated transient stress. That tends to show up first in EMI sections, where a capacitor that looked perfectly reasonable in a slower converter can suddenly feel less comfortable than the schematic suggests.

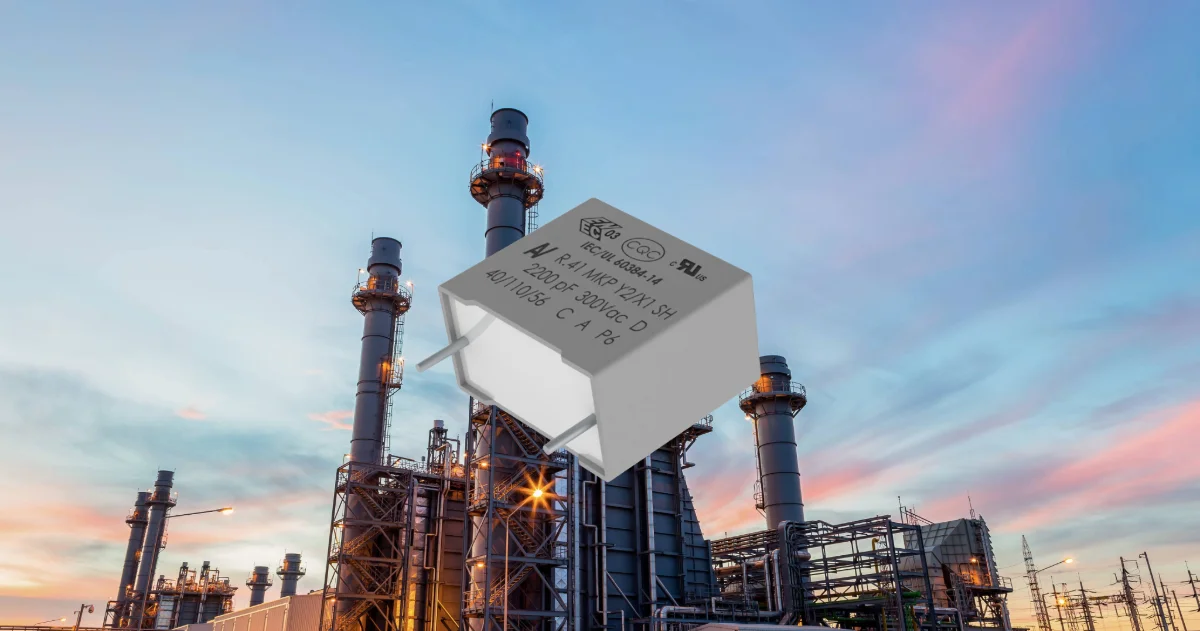

That is where YAGEO’s R41D V234 Series fits. The R41D V234 Series is a Y2/X1 metallized polypropylene film capacitor used for EMI suppression in wide-bandgap power conversion systems. In a typical on-board charger, DC/DC converter, or solar inverter, this kind of capacitor sits in the filter path dealing with the switching noise and transient energy that the power stage keeps throwing back toward the line.
What makes this series interesting is that it is not just another film capacitor refresh with a slightly different catalog line. The pressure on EMI capacitors has changed because the switching behavior of wide-bandgap devices has changed, and that means parts in the Y position now need to handle more than simple compliance housekeeping. They have to survive faster edges and higher current stress without turning the filter into a bulky compromise.
Faster Switching Starts Changing The EMI Filter Itself
The headline numbers here matter because they point directly at that shift. YAGEO says the R41D V234 Series is based on its R41D high dV/dt platform, with the V234 c-spec extension improving ripple current capability for newer power designs. The parts are specified for 300 VAC at 50/60 Hz, with a recommended DC voltage of 1200 VDC, and come in capacitance values from 0.001 µF to 0.22 µF.
More importantly, the series is designed around high dV/dt capability of 6000, 4500, or 3000 V/µs depending on lead pitch, with about twice the Irms capability of standard designs according to YAGEO. That matters because faster switching does not just make the semiconductor stage more efficient. It also pushes more stress into the surrounding passive network, and the filter is often where that starts getting awkward.
Ripple Current Capability Can Reduce Filter Bulk
One useful angle here is that better ripple current handling does more than improve survivability. It can change the shape of the filter itself. If a capacitor can take more current without being paralleled as heavily, designers have a chance to reduce capacitor count, free up PCB space, and simplify the layout around the EMI section.
That is part of the pitch behind the R41D V234 Series. YAGEO says the higher Irms capability can reduce the number of capacitors needed in EMI filters, which is a practical benefit in compact power converters where the filter can become larger and messier than anyone really wanted. You notice it quickly in dense automotive and industrial hardware, where the magnetics, semiconductors, and suppression network all want the same piece of board.
The available radial packages also keep the series grounded in real hardware rather than theory. This is still a safety capacitor family intended for AC input Y2/X1 positions, HVDC filters, three-phase UPS systems, charging stations, and similar equipment where mechanical fit and long-term stress matter just as much as the headline electrical figures.
Reliability Matters Once Heat And Humidity Join In
YAGEO is also leaning on reliability, which makes sense for this class of part. The R41D V234 Series is described as THB grade and intended for hot and humid operating conditions, with a maximum operating temperature of 125°C for 2,000 hours. That is important because film capacitors in power conversion systems rarely fail in glamorous ways. More often they just age under electrical and environmental stress until the filter margin starts shrinking.
The series is also positioned for industrial and automotive use, with Y2/X1 safety classification, AEC-Q200 compliance, and approvals including ENEC, UL, cUL, and CQC. That gives the family a broader deployment story, especially in power electronics where the same converter architecture may need to serve both automotive and non-automotive programs.
Passive Parts Are Feeling The Wide-Bandgap Shift Too
A lot of the attention around SiC and GaN still lands on the switches themselves, which is understandable, but it misses part of the story. Faster switching and steeper edges do not stay politely contained inside the transistor package. They spread stress into the filter, the layout, and the passive components that used to have a quieter life.
That is really what the R41D V234 Series reflects. It is a reminder that wide-bandgap power design is not only about choosing a faster switch. The surrounding capacitor network has to keep up as well, otherwise the elegant converter on paper starts turning into a much less elegant EMI problem on the bench.
Learn more and read the original announcement at www.yageo.com
Technology Overview
The R41D V234 Series is a family of Y2/X1 metallized polypropylene film capacitors for EMI suppression in wide-bandgap power conversion systems. The series is rated for 300 VAC and has a recommended DC voltage of 1200 VDC, with capacitance values from 0.001 µF to 0.22 µF. It is designed for high dV/dt and increased ripple current handling in systems such as OBCs, DC/DC converters, solar inverters, and EV charging equipment.
Frequently Asked Questions
What is the R41D V234 Series used for?
It is used for EMI suppression in wide-bandgap power systems such as on-board chargers, DC/DC converters, solar inverters, UPS systems, and charging stations.
What voltage ratings does the R41D V234 Series support?
The series is rated for 300 VAC at 50/60 Hz with a recommended DC voltage of 1200 VDC.
