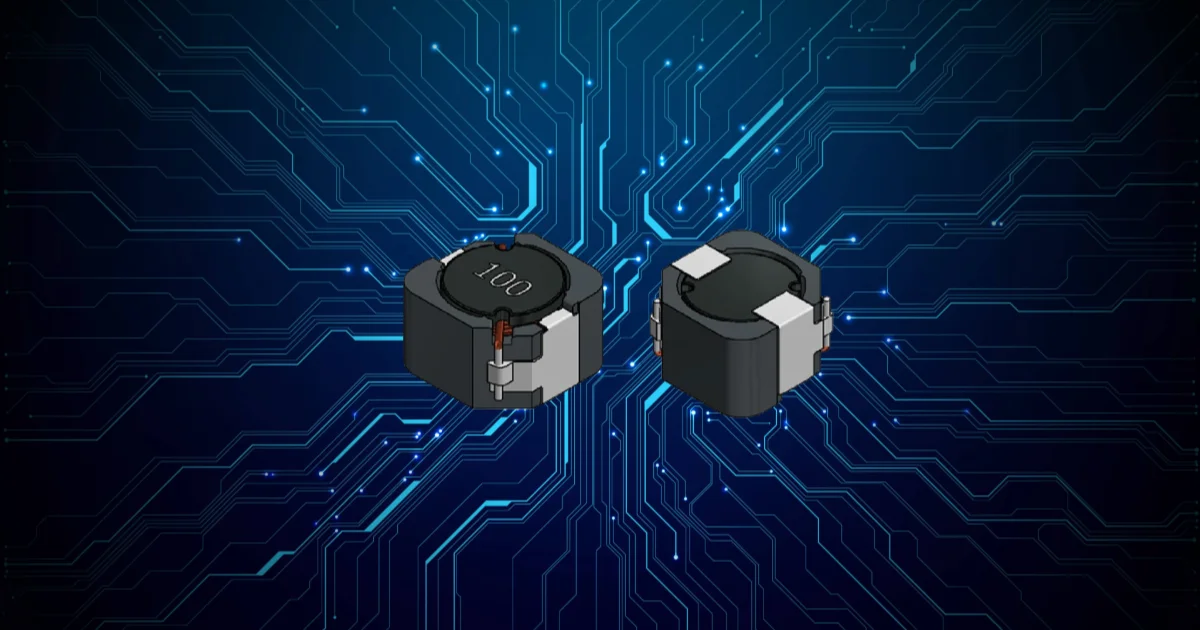

Power inductors have a habit of getting squeezed from both sides. Designers want more current, lower loss, and stable inductance under load but they also want the power stage to stay compact. YAGEO’s new APCA7045 has been built for that job. It’s a ferrite shielded power inductor used in DC-DC converters, VRM and VRD controllers, and other high-current power circuits where board space, thermal margin, and EMI all need attention at the same time. The APCA7045 comes in a 7.0 × 7.0 × 4.5 mm package, which puts it in a useful spot for compact power designs that still need solid current handling. In a typical embedded power rail, industrial control board, or automotive subsystem, the inductor is not just another part in the BOM. It affects placement, loop area, and how easy the rest of the rail is to work around.
Ferrite Shielding Helps Keep the Power Stage Cleaner
The most useful part of the APCA7045 is the ferrite shielded structure. YAGEO uses a ferrite ring core around the drum core to reduce magnetic flux leakage, which is important once switching currents rise and nearby circuitry starts getting crowded. On a dense board, that can make a real difference. This is one reason shielded inductors keep showing up in automotive, industrial, and communications hardware. As more power is pushed through smaller layouts, magnetic leakage becomes harder to ignore. A cleaner magnetic profile gives designers more freedom when power stages have to sit close to other sensitive circuits.
DC Bias Stability Is a Practical Advantage
YAGEO is also pushing the APCA7045 for strong DC bias performance, and that is a sensible focus. Inductors can lose value under load, and once that drop becomes too large, converter behavior starts moving away from what the design expected. The APCA7045 is built to hold inductance more effectively as current rises, which helps keep power conversion more stable in demanding conditions. The series covers inductance values from 1 µH to 470 µH, with RDC values from 0.0117 Ω to 1.56 Ω depending on the part selected. Saturation current reaches up to 6.5 A, while Irms goes up to 4.8 A. That gives the APCA7045 a useful spread for designs that need a compact inductor but still expect decent current handling and reasonable efficiency.
Built for Hotter and Harder Environments
The operating temperature range runs from -55 °C to +155 °C, and YAGEO also offers automotive-grade support for the series. That broadens its appeal beyond general-purpose power rails. Automotive electronics, industrial control units, and communications hardware all put steady pressure on passive parts, especially when ambient temperatures climb and reliability targets stay high. YAGEO also quotes breakdown voltage up to 1000 V and highlights no thermal aging in the product positioning. Together with the shielded construction, that gives the APCA7045 a stronger case in designs where long-term electrical stability matters just as much as basic current handling.
A Compact Inductor for Real Power Rails
There is nothing unusual about wanting more from a power inductor now. Rails are denser, switching nodes are tighter, and power stages are expected to stay efficient without taking over the board. The APCA7045 fits that direction well. It gives designers a compact shielded inductor with stable DC bias behavior, useful current capability, and a temperature range that suits more demanding systems. For automotive and industrial power designs, that is a solid combination.
Learn more and read the original announcement at www.yageo.com
Technology Overview
The APCA7045 is a ferrite shielded power inductor used in DC-DC converters, VRM and VRD controllers, and other high-current power circuits. It uses a 7.0 × 7.0 × 4.5 mm package, offers inductance values from 1 µH to 470 µH, and supports operating temperatures from -55 °C to +155 °C. Maximum specified saturation current is 6.5 A and Irms reaches 4.8 A, depending on part selection.
View the APCA7045 product brief.
Frequently Asked Questions
What is the APCA7045 used for?
It is used in DC-DC converters, VRM and VRD controllers, and other compact high-current power circuits.
Why use a ferrite shielded inductor here?
The ferrite shield helps reduce magnetic flux leakage and supports cleaner operation in dense power designs.
What inductance range does the APCA7045 cover?
The APCA7045 series covers values from 1 µH to 470 µH.
