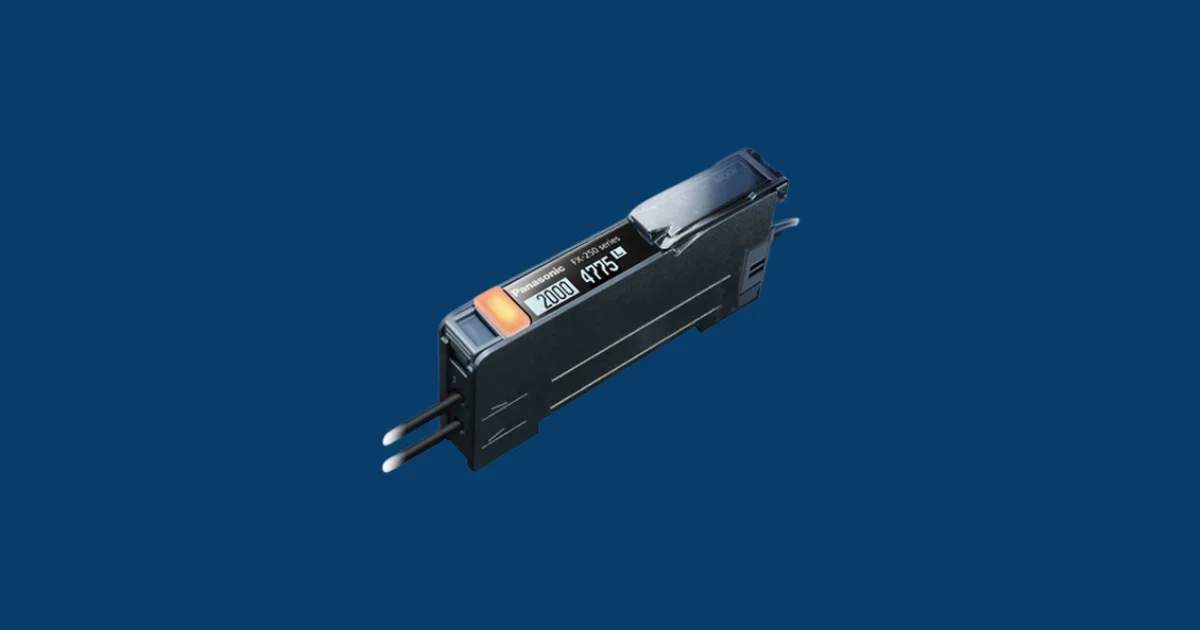

Panasonic Industry has added the FX-250 to its fiber sensor lineup with a fairly clear objective: reduce the setup burden around small automation sensors. The FX-250 is a digital fiber sensor amplifier used for object detection in factory automation systems, and the strongest part of the launch is not novelty in sensing itself. It is the push toward faster threshold teaching, clearer status visibility, and easier installation on smaller equipment where service space is already limited.
That is a sensible place to focus. In compact machines and robotic hands, fiber heads are often easy enough to position, but the amplifier still has to be read, adjusted, and maintained without wasting time. Panasonic Industry has gone after that with an OLED display that shows threshold value and incident light intensity together, while also presenting menu items in full text instead of abbreviated labels.
Easier Threshold Teaching Looks Like The Real Improvement
The FX-250’s smart limit teaching function is probably the most useful part of the launch. Panasonic Industry says switching threshold teaching can be completed with two button presses while also handling saturation, without first adjusting emitted light separately. That is the kind of change that matters because setup friction around reflective or high-glare targets is usually not dramatic enough to headline, but it is exactly the sort of thing that slows commissioning down.
For shiny, transparent, or very small parts, the issue is often stability more than basic detectability. A sensor that works after several rounds of adjustment is not really the same thing as one that sets up cleanly and stays there. Panasonic Industry is clearly trying to move the FX-250 toward the second category.
Compact Housing Helps Once The Machine Gets Dense
Panasonic Industry also positions the FX-250 for small equipment and robotic hands, and that is where the mechanical side of the design starts to matter. The European product page points to a cover structure that needs less room during opening and closing, which is useful because compact sensing hardware only helps up to the point where somebody has to service it. Once the surrounding machine gets crowded, access becomes part of the installation decision.
The interference prevention feature also fits that same kind of machine. Panasonic Industry says up to four units can be mounted side by side using different light emission frequencies to reduce mutual interference. That keeps multi-point sensing arrangements from becoming more awkward than they need to be.
Fast Enough For High-Speed Lines, But That Is Not The Whole Story
Panasonic Industry quotes a fastest response time of 35 μs in H-SPD mode, with selectable modes at 60 μs, 250 μs, 2 ms, and 24 ms. Those settings give the FX-250 enough range for both fast-moving production work and slower detection conditions where a little more margin may be useful. Panasonic Industry also says the amplifier uses auto power control and a four-element LED arrangement to stabilize emitted light during power-on and under temperature change.
That combination makes the FX-250 look less like a speed-led product and more like a cleanup of the parts of fiber sensing that still irritate people in daily use. Better teaching, better readability, less wasted access space, and enough response speed to stay relevant on faster lines is a practical mix. Panasonic Industry has not changed what a fiber sensor amplifier is here. It has just made the surrounding work less awkward, which is often the more valuable improvement.
Learn more and read the original announcement at www.industry.panasonic.eu
Technology Overview
The Panasonic Industry FX-250 is a digital fiber sensor amplifier for factory automation systems. It supports object detection using connected fiber heads and offers selectable response times down to 35 μs, a 12 to 24 V DC supply range, and side-by-side mounting support for up to four units with interference prevention.
Frequently Asked Questions
What is the Panasonic Industry FX-250 used for?
It is used for object detection in factory automation systems, including smaller machines and robotic hands where space is limited.
How fast is the FX-250?
Its fastest selectable response time is 35 μs in H-SPD mode. Panasonic Industry also lists 60 μs, 250 μs, 2 ms, and 24 ms modes.
Can multiple FX-250 units be mounted together?
Yes. Panasonic Industry says up to four units can be mounted side by side using different light emission frequencies to reduce mutual interference.
