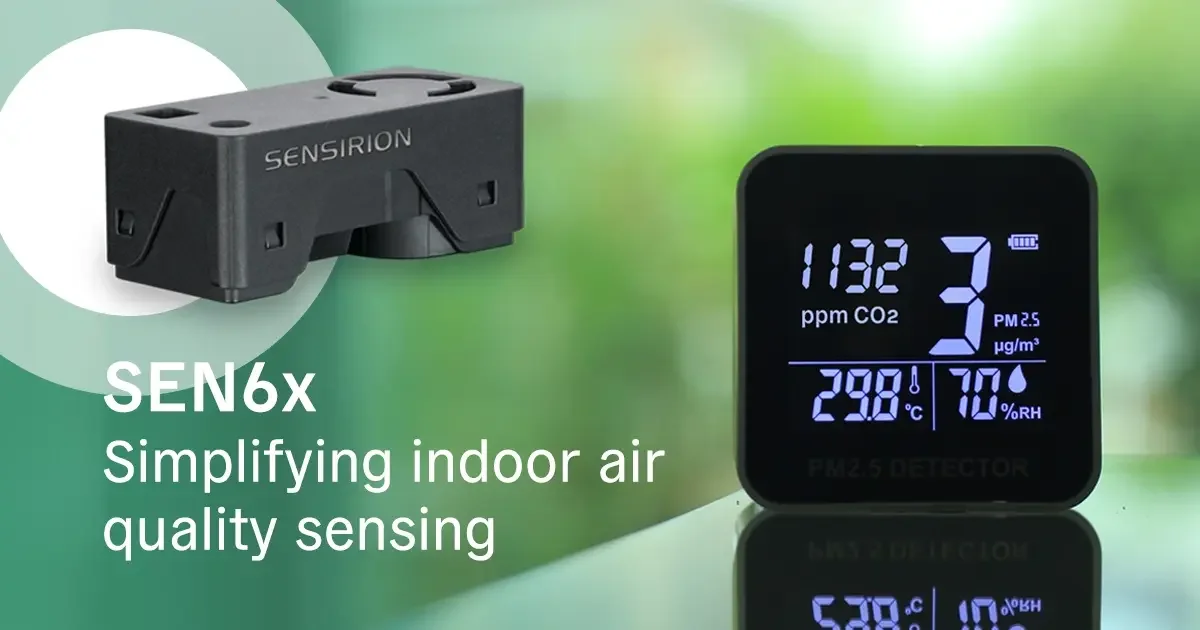

Sensirion has launched the SEN68 and SEN69C, two compact sensor modules that bring multiple indoor air quality measurements into a single platform.
The modules measure particulate matter, relative humidity and temperature, volatile organic compounds (VOCs), nitrogen oxides (NOx) and formaldehyde (HCHO), with the SEN69C adding CO₂ measurement. Across the available measurements, Sensirion says the modules can monitor up to ten environmental parameters.
Central to the smaller design is Sensirion's new SPS6x, a miniaturized MEMS-based particulate matter sensing component. By reducing the space required for PM measurement, Sensirion has been able to integrate it alongside the other sensing technologies within the SEN68 and SEN69C.
Multiple Air Quality Measurements in One Module
Indoor air quality systems often need to monitor several different types of pollutants alongside environmental conditions. The SEN68 and SEN69C bring these measurements together rather than requiring separate modules for each sensing function.
Alongside particulate matter, humidity and temperature, both modules monitor VOCs, NOx and HCHO. The SEN69C extends the platform with CO₂ sensing for applications requiring carbon dioxide measurement as part of the same air quality system.
Sensirion has also integrated onboard algorithms for processing the different sensor measurements. The combination is aimed at indoor air quality monitors, smart buildings, room sensors and air purifiers, as well as applications such as vape detection.
Miniaturized MEMS Particulate Matter Sensing
The SPS6x particulate matter sensor is a key part of the new module architecture. Sensirion describes it as a miniaturized MEMS-based PM sensing component developed to provide greater flexibility where available space limits the size of an air quality monitoring system.
Integrating the PM sensor with the other sensing elements gives equipment manufacturers a single module for monitoring several air quality parameters while reducing the amount of separate sensing hardware that needs to be incorporated into the design.
Sensirion is also offering the SEK-SEN69C Evaluation Kit for evaluating both the SEN69C and SEN68. It provides access to the modules' measurements and onboard algorithms and includes a SEN69C, adapter cable, jumper wire set and Qwiic adapter cable. A SEK-SensorBridge is required for operation.
The SEN68, SEN69C and SEK-SEN69C Evaluation Kit are available now through Sensirion's distribution network.
Learn more and read the original announcement at sensirion.com.
Technology Overview
The Sensirion SEN68 and SEN69C are compact multi-parameter indoor air quality sensor modules integrating particulate matter, humidity, temperature, VOC, NOx and HCHO sensing. The SEN69C also incorporates CO₂ measurement. Both use Sensirion's new miniaturized SPS6x MEMS-based particulate matter sensing component.
FAQs
What do the Sensirion SEN68 and SEN69C measure?
Both modules measure particulate matter, humidity, temperature, VOCs, NOx and HCHO. The SEN69C additionally provides CO₂ measurement.
What is the SPS6x?
The SPS6x is Sensirion's new miniaturized MEMS-based particulate matter sensing component. It forms part of the SEN68 and SEN69C architecture and contributes to their compact form factor.
Where can the SEN68 and SEN69C be used?
Sensirion is targeting indoor air quality monitoring, smart buildings, room sensors, air purifiers and vape detection applications.
