ODU Expands ODU-MAC Black-Line With Compact Mass Interconnect

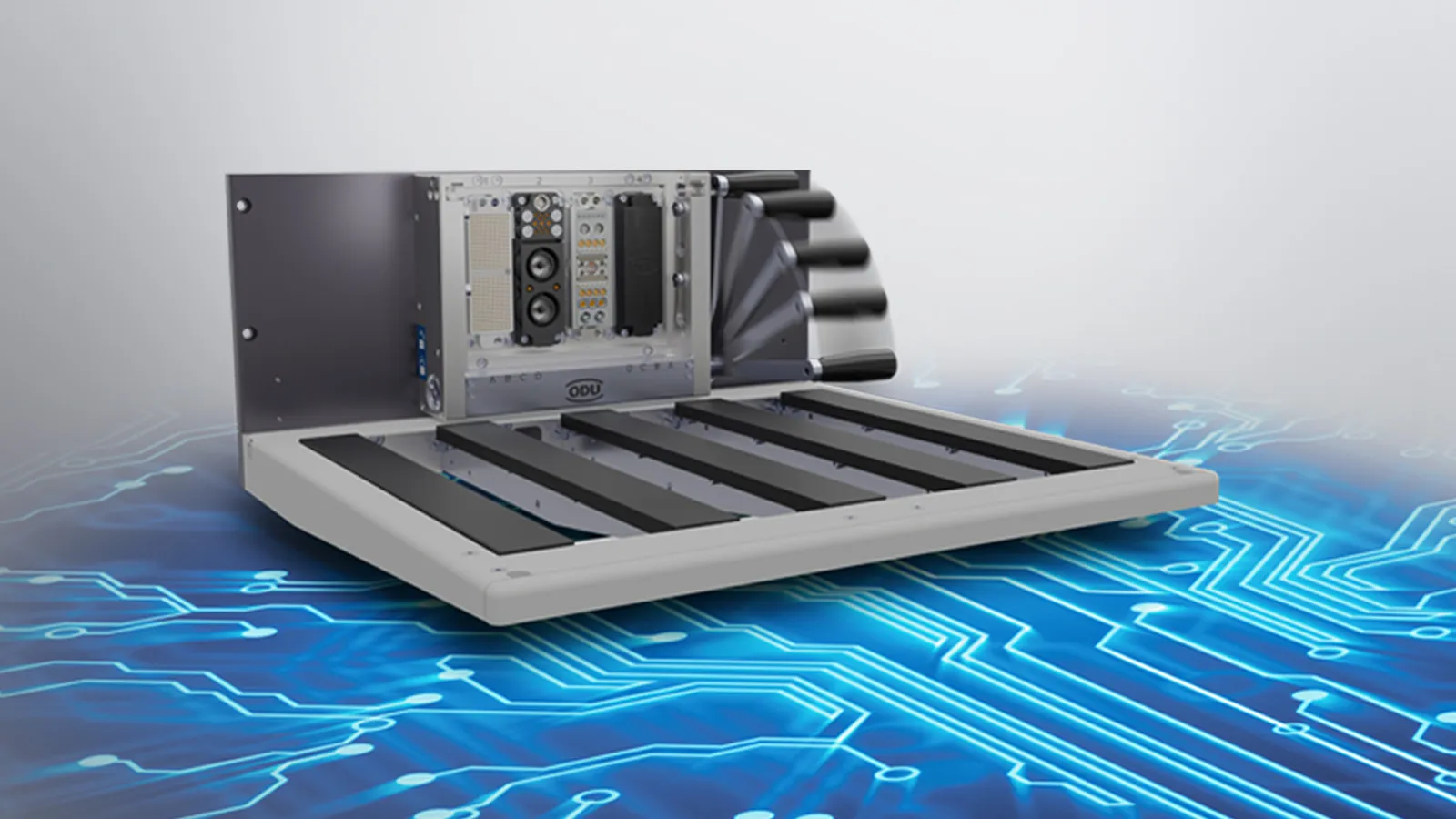

Test engineers working with automated inspection setups often face a familiar constraint. The signal count keeps rising while the available rack space stays fixed. High channel density is now expected in everything from semiconductor handlers to complex automotive harness testers, yet most mass interconnect hardware grows bulky once multiple modules and power paths are added. ODU’s new ODU-MAC Black-Line Compact Class is built to solve that tension by offering a modular interconnect system that fits a large number of channels into a footprint half the width of a standard 19 inch rack.

Increasing Signal Density Without Growing System Size

The Compact Class supports up to 1,536 signal points within its reduced footprint, which is significant for engineers trying to consolidate test stations or integrate higher bandwidth probes in existing frames. The structure uses four height units and accommodates four ODU-MAC Blue-Line frames, giving designers a familiar module environment but in a tighter form factor. That combination makes it easier to build higher channel counts into installations where space is already committed. Mechanical coding and microswitch monitoring help prevent mismating during rapid changeover, a common risk in production environments where interfaces may be cycled hundreds of times a week.

Modularity Built Around Real Test Workflows

Test systems vary widely, so mass interconnect hardware has to adapt rather than force a fixed layout. ODU offers three approaches for the receiver section. A housing option provides hand lever locking for operators who need ergonomic, tool-free engagement. The ITA option allows integration of standard test equipment, which is useful when legacy instruments or mixed vendor platforms must be accommodated. The Rapid connector option uses a half shell design that speeds assembly and shortens maintenance cycles. Engineers spending time with fixture builds will appreciate the way this simplifies access and reduces assembly steps.

Power Delivery Inside a Space Constrained Platform

High channel density often creates a separate challenge when a test system also needs to route meaningful current. The Compact Class includes a power block with two 16 mm Lamtac Flex contacts capable of carrying up to 600 amps. That level of current in such a compact region is notable because it allows both signal and high power paths to be brought through the same interconnect structure. There is also provision for extra media, allowing pneumatic or other utilities to be added without redesigning the enclosure.

Implications for Automated Test Equipment

Automated test environments are growing in complexity, and the hardware that connects fixtures to instruments must keep up. By reducing width while raising the number of supported signal points, the ODU-MAC Black-Line Compact Class gives engineers more freedom to build dense architectures without consuming additional rack space. The modularity across receiver options supports a wide mix of test scenarios, and the integrated power capability broadens its use beyond simple signal switching. As product variations and test demands increase, platforms like this help keep system growth under control.
