YAGEO A7C0 Hybrid Capacitor Targets High Temperature Power Designs

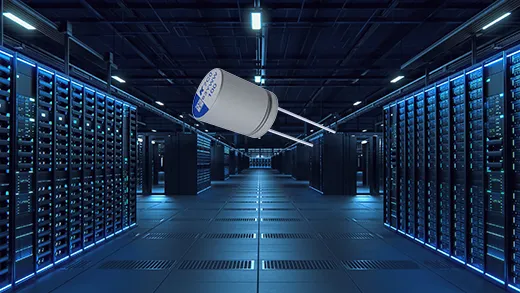

Power stages in automotive and industrial systems have become tougher environments for passive components. Higher switching speeds and tighter packaging place extra stress on standard aluminum electrolytics, especially when equipment spends most of its operating life running warm. YAGEO’s A7C0 Hybrid Polymer Radial Capacitor is built for these conditions. By combining a conductive polymer with a liquid electrolyte in a through hole radial format, it aims to provide stable behaviour across a wide temperature range without the ESR penalty often associated with high temperature operation.

Hybrid Structure Aimed At Demanding Rails

The A7C0 sits on a foundation that blends the strengths of two capacitor types. Conductive polymers offer naturally low ESR, which helps suppress ripple at switching frequencies common in DC DC converters. Liquid electrolytes handle thermal cycling well and can provide long service life, but usually at the cost of higher ESR. Here, the two are combined inside a traditional aluminum can with a rubber seal, allowing the device to survive temperatures up to 125 degrees Celsius while retaining the self healing characteristic that prevents small dielectric faults from becoming critical failures. This approach makes sense for power rails that see frequent transients or go through repeated warm up cycles across the day.

Electrical Behaviour With Real Design Consequences

Capacitance values from 27 to 560 microfarads and voltages from 25 to 63 volts place the A7C0 squarely in the territory of automotive controllers and industrial converters. Those values sit in a sweet spot for the kind of rails used in engine modules or compact industrial supplies, where space is tight and ripple currents are usually higher than anyone would like. The polymer layer knocks the ESR down enough that the capacitor runs cooler during fast switching events, which is often the difference between a design that behaves on the bench and one that slowly drifts once it is sealed inside a cramped enclosure. Leakage current follows the familiar 0.01 CV rule, keeping standby losses predictable. AEC Q200 qualification and a 4,000 hour lifetime rating at 125 degrees Celsius indicate that the hybrid structure stays electrically stable even when the device is pushed hard.

Practical Integration In Converters And Control Modules

Mechanically, the A7C0 keeps to a radial through hole format with diameters from 6 to 10 millimetres, making it straightforward to drop into existing supply stages. Options for long leads, cut leads and ammo taped packaging allow for automated insertion where needed. On dense boards, every square millimetre counts. If the ESR is low enough to avoid stacking multiple capacitors in parallel, that can open up room around the hotter parts of the design where layout options are usually limited. The rigid anchoring of a through hole package also helps in systems subject to vibration, such as automotive ECUs or industrial drives.

Reliability Trends In Modern Power Platforms

Design teams building power stages rarely get extra board area or lighter thermal loads to work with. They end up looking for components that stay predictable even when everything around them is running close to its limits. The A7C0’s mix of long service life, reduced ESR and high ripple tolerance positions it well for converters in battery management systems, motor control stages and high density regulators in industrial platforms. The self healing behaviour from the hybrid electrolyte structure helps maintain performance over time, particularly in circuits that are rarely allowed to cool. As power densities continue to rise, capacitors that combine electrical efficiency with stable high temperature behaviour will influence how engineers plan future updates to these systems.
