Microchip JANPTX TVS Devices Bring Military Qualification to Plastic Packaging

Transient protection in aerospace and defense systems is rarely about convenience. Components are selected under strict qualification regimes, expected to survive extreme electrical stress, and often required to align with specifications written decades ago. For transient voltage suppressors, that has traditionally meant hermetic packaging, accepted as the cost of meeting military reliability expectations. As system designs evolve, that assumption is becoming harder to justify. Microchip is addressing that tension with its JANPTX family of transient voltage suppressors.

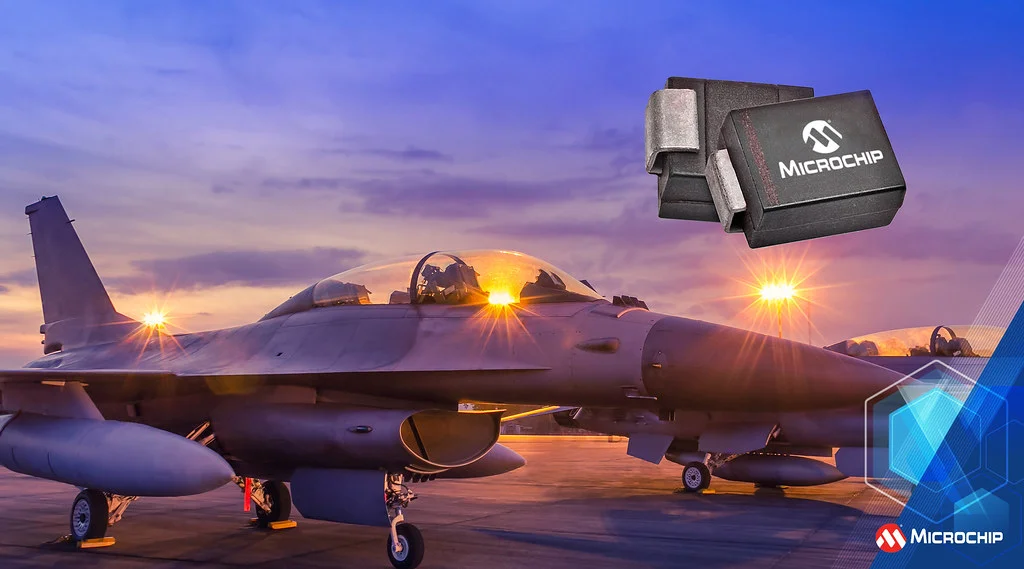

The JANPTX devices are non-hermetic, plastic-packaged TVS diodes that meet the MIL-PRF-19500 qualification. That combination is unusual. Military-qualified transient protection has long been associated with metal or ceramic packages, chosen as much for precedent as for performance. By bringing MIL-PRF-19500 approval to a surface-mount plastic device, Microchip is targeting aerospace and defense designs where reliability remains non-negotiable, but system-level constraints have shifted.

Qualification as a System Constraint Rather Than a Feature

In high-reliability electronics, qualification often shapes the architecture as much as electrical requirements do. MIL-PRF-19500 defines screening, testing, and traceability intended to reduce long-term failure risk in mission-critical environments. Once a component is qualified under that framework, it becomes far easier to reuse across programmes without reopening certification questions.

The JANPTX family meets that specification while using plastic packaging, which changes how protection devices can be integrated. Rather than forcing every component to provide its own environmental isolation, designers can rely more heavily on enclosure-level protection and controlled manufacturing. This does not remove the role of hermetic devices, but it introduces an option where packaging choice can be driven by system exposure rather than qualification alone.

Transient Energy in Aerospace and Defense Environments

Electrical stress in airborne and defense platforms extends well beyond static discharge. Lightning-induced surges, switching transients, electromagnetic pulse effects, and coupled RF energy all place demands on protection components that must respond quickly while absorbing substantial energy.

The JANPTX devices are rated for peak pulse power up to 1.5 kW using a 10/1000 microsecond waveform, reflecting the type of surge energy encountered in real installations rather than laboratory ESD events. Internal testing indicates clamping response times below 100 picoseconds, which becomes relevant when protection must act before sensitive digital or mixed-signal circuitry is exposed to damaging voltages. These characteristics allow the devices to be placed closer to vulnerable electronics rather than confined to coarse protection at system boundaries.

Where These Devices Actually Sit in a System

In practice, transient suppressors end up distributed across a design. Some protect incoming power, others sit near control electronics, and a few are added late when test results reveal an unexpected weakness. In aerospace and defense platforms, those locations can span multiple voltage domains within the same subsystem.

The JANPTX family is clearly intended to accommodate that reality. With working voltages extending from low-voltage logic rails through to higher-voltage distribution paths, the same qualified device family can be used wherever controlled DC protection is required. All variants are unidirectional, reinforcing their role on known-polarity supply lines and signal paths where decisive clamping is preferred over bidirectional symmetry.

From a programme perspective, this matters less as a specification and more as a risk-management tool. Using one qualified TVS family across multiple voltage domains reduces late-stage exceptions and documentation churn. In long-life systems, where even minor changes can trigger requalification effort, that consistency often outweighs the appeal of optimising each protection point independently.

Alignment With Civil and Military Immunity Standards

Although MIL-PRF-19500 defines the qualification baseline, aerospace and defense equipment is rarely tested against a single framework. Many systems must also demonstrate immunity to IEC61000-4-2, IEC61000-4-4, and IEC61000-4-5, covering ESD, fast transients, and surge conditions.

The JANPTX devices are designed with those stress profiles in mind. That alignment reduces uncertainty during compliance testing, particularly in dual-use platforms that must satisfy both military and civil requirements. For engineers, using protection components already characterised against these conditions can simplify fault analysis when issues arise late in validation.

Surface-Mount Packaging and Integration Trade-Offs

The JANPTX devices are supplied as surface-mount components with a mass of roughly a quarter of a gram. Compared with traditional hermetic packages, this supports higher board density and compatibility with modern assembly processes. Equivalent hermetic versions remain available, allowing packaging choice to be driven by exposure and lifetime considerations rather than qualification alone.

This flexibility reflects a broader shift in high-reliability electronics. As enclosures, coatings, and system-level protection improve, designers have more freedom to balance weight, cost, and manufacturability without compromising reliability expectations.

Incremental Change With Programme-Level Impact

The significance of the JANPTX family is not tied to any single electrical parameter. It lies in the way qualification, packaging, and performance are combined. By demonstrating that MIL-PRF-19500 requirements can be met in a plastic TVS device, Microchip is expanding the design space available for transient protection in aerospace and defense systems.

For engineers, this does not remove the need for careful risk assessment. It does, however, provide another option when balancing reliability, integration, and long-term programme stability in systems expected to operate for decades.
