Vishay VOx619A Optocouplers Improve Signal Stability in Harsh Industrial Conditions

Engineers working with isolation stages in industrial control systems often discover that the weakest link is not insulation distance or surge rating but inconsistent CTR as temperature climbs. A control loop that behaves predictably in the lab can drift once the enclosure warms or once a microcontroller runs close to its drive limits. Traditional phototransistor couplers lose transfer ratio faster than most designers expect, and the drop shows up as slow edges, missed transitions, or subtle timing changes that only appear during long-duration testing. Devices that hold their behavior when heat, noise, or limited drive current stack up end up shaping the stability of the system more than the isolation barrier itself. That is the space where the VOx619A series from Vishay Intertechnology finds its relevance.

CTR Behavior That Stays Predictable Across Temperature

The VOx619A series keeps its CTR above 75 percent of its specified value across a wide temperature window, and that steadiness becomes useful when ambient conditions shift faster than the board can compensate. Most older couplers drop below half their nominal CTR by the time they reach moderate thermal load, which forces designers to oversize margins or filter transitions more aggressively. The VOx619A profile gives microcontrollers with weak output drive more room to operate because the diode’s forward current sits near 0.5 mA, and this low drive requirement changes how tightly the isolation stage interacts with the rest of the digital logic. That combination becomes noticeable in metering hardware or motion controllers where timing jitter reveals small nonlinearities that do not appear at room temperature.

Isolation Packages Mapped to Real Layout Constraints

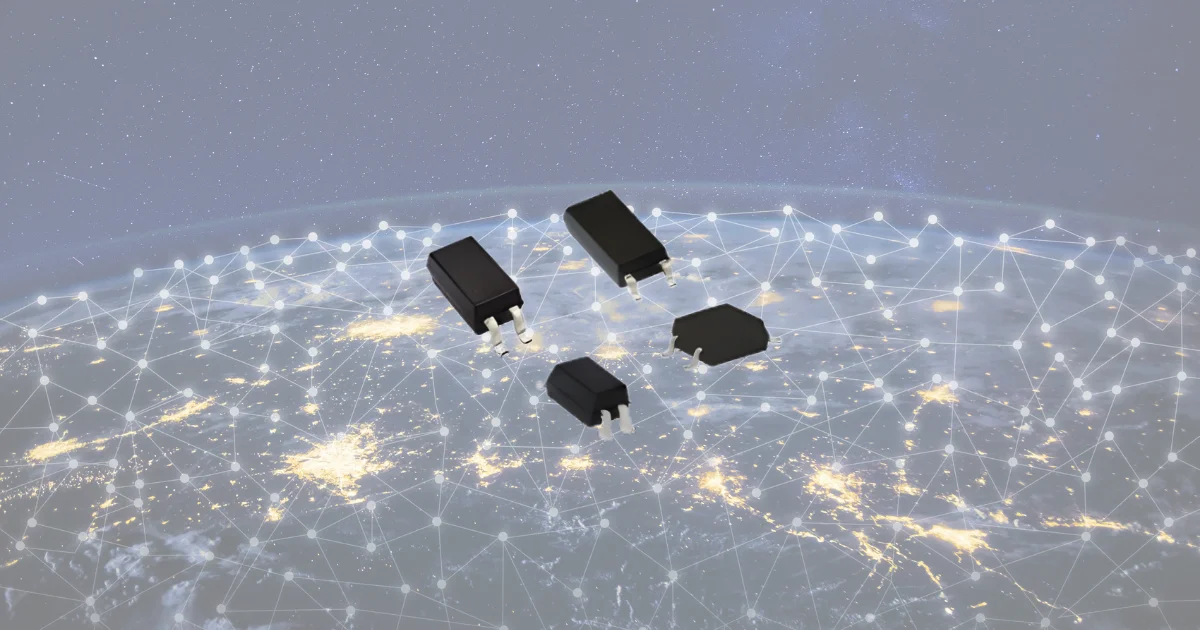

The series spans four package options, each tied to practical board-level constraints. The VO619A and VOL619A versions handle higher isolation demands with creepage distances that suit boards routed near high-voltage nets. The VOM619A and VOS619A versions bring the same electrical behavior into smaller footprints where space is the limiting factor rather than insulation distance. These variations give designers a consistent transfer profile while letting mechanical, safety, and density requirements drive the final package choice. In practice the decision comes down to how close copper pours, connectors, or switching nodes sit around the isolation boundary, and the VOx619A options give enough flexibility that footprints do not have to be reworked late in development.

Electrical Behavior That Suits Mixed-Signal Industrial Systems

The devices use an infrared diode paired with a phototransistor, and while that architecture has been around for decades, the way the VOx619A series handles operating extremes makes it relevant for newer industrial systems that blend low-power logic with noisy power stages. The extended temperature rating up to 125 degrees Celsius means the device does not drift when placed close to regulators or converters that run warm under load. That stability helps reduce the tendency for timing to shift when the enclosure hits peak temperatures over long duty cycles. It becomes particularly important in grid metering or micro mobility hardware where the controller sits inside compact housings that trap heat and expose components to slower thermal gradients.

A Device Shaped for Equipment That Cannot Tolerate Signal Drift

Industrial controllers, metering modules, and telecom subsystems rarely fail in obvious ways. Instead, they accumulate small timing errors or intermittent misreads that make systems appear unstable without producing clear fault codes. An optocoupler that maintains CTR shape, isolation integrity, and low forward current under these conditions gives designers more headroom when planning long service life and noisy electrical environments. The VOx619A series aligns with that reality rather than a clean laboratory setup. Its combination of temperature resilience, package variety, and consistent transfer behavior makes it a practical choice for equipment that needs predictable isolation without heavy thermal management.

Learn more and read the original announcement at www.vishay.com
