Melexis Introduces MLX92344 Hall Switch with Four Output States Over Two Wires
Melexis has introduced the MLX92344 automotive Hall switch. The device supports up to four output states over a two-wire interface, programmable current outputs from 3mA to 28mA, and operation from -40°C to +150°C.

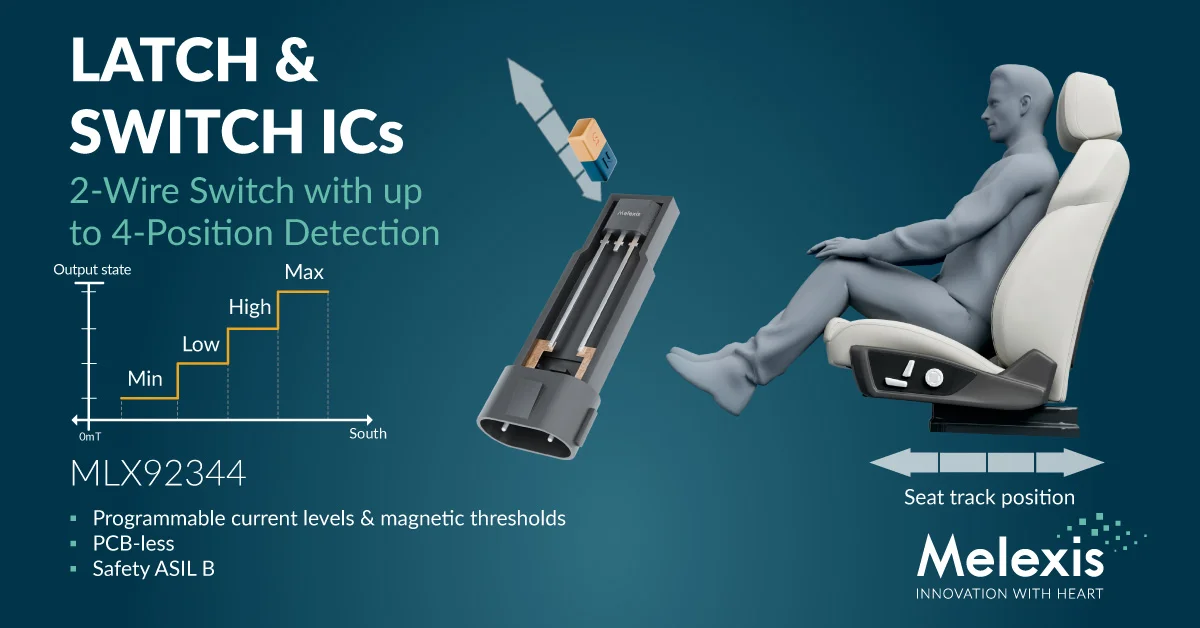

The MLX92344 is designed for applications including seat-track position sensing, electronic latches, charge-port monitoring, steering-column position sensing, automatic gear selectors, park locks, disconnect units, and seatbelt buckle systems.
Four Output States Over a Two-Wire Interface
The MLX92344 incorporates programmable magnetic operating and release thresholds together with programmable output current levels. The device supports up to four output states. Output current levels can typically be configured at 5mA, 10mA, 15mA, and 20mA within a programmable range of 3mA to 28mA.
According to Melexis, the device maintains compatibility with existing two-wire automotive interfaces and electronic control units.
Programmable Magnetic Thresholds
The MLX92344 stores switching thresholds, output current levels, diagnostic settings, and output-state configuration in on-chip non-volatile memory. The device supports temperature compensation for both Neodymium and Ferrite magnets. Melexis also offers variants incorporating Integrated Magnetic Concentrator technology for lateral magnetic field detection.
Automotive Specifications
The MLX92344 operates from 2.7V to 28V and supports a 32V absolute maximum rating. The device is specified for operation from -40°C to +150°C. Melexis states that the sensor is qualified to AEC-Q100 requirements and developed as an ASIL B SEooC device. Electrostatic discharge ratings include 8kV Human Body Model protection and 15kV system-level protection.
Available Now
The MLX92344 is available now in TSOT23-3L and TO92-3L package options.
Download the MLX92344 datasheet.
Learn more and read the original announcement at www.melexis.com
Technology Overview
The MLX92344 is an automotive Hall-effect switch with programmable magnetic thresholds and programmable output current levels. The device supports up to four output states over a two-wire interface, operates from 2.7V to 28V, and is qualified to AEC-Q100 requirements.
Frequently Asked Questions
How many output states does the MLX92344 support?
The device supports up to four programmable output states.
What supply voltage does the MLX92344 support?
The sensor operates from 2.7V to 28V and supports a 32V absolute maximum rating.
What automotive qualification does the MLX92344 have?
The MLX92344 is AEC-Q100 qualified and developed as an ASIL B SEooC device.
