Diodes Incorporated Launches 60 V Field-Plated Rectifiers for Automotive Power Systems
Diodes Incorporated launches four 60 V field-plated Super Barrier Rectifiers covering 2 A to 8 A, with low forward-voltage and low reverse-leakage options for automotive power circuits.

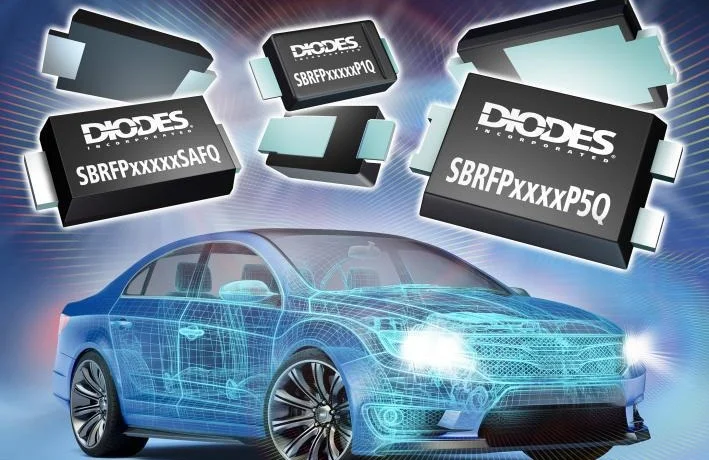

The new SBRFP2M60P1Q, SBRFP2M60SAFQ, SBRFP3M60SAFQ and SBRFP8A60P5Q use the company’s field-plated SBR technology and cover current ratings from 2 A to 8 A. They are intended for automotive applications including LED lighting, DC-DC converters, reverse-polarity protection and other power circuits.
Rather than applying the same electrical characteristics across the range, Diodes has split the devices to address different requirements around conduction loss, reverse leakage and current capability.
Low Forward Voltage or Low Reverse Leakage
The SBRFP2M60P1Q and SBRFP8A60P5Q are designed for low forward voltage. The 2 A SBRFP2M60P1Q has a maximum forward voltage of 0.58 V, while the 8 A SBRFP8A60P5Q is specified at a maximum of 0.55 V. Lower forward voltage reduces the voltage dropped across the rectifier while it is conducting, and therefore the associated conduction loss.
The SBRFP2M60SAFQ and SBRFP3M60SAFQ instead target applications where low reverse leakage is important. The 3 A SBRFP3M60SAFQ, for example, has a typical reverse leakage current of 1.2 µA at 25°C.
Diodes also specifies high repetitive avalanche capability and fast reverse recovery across the new devices. The field-plated construction is used to manage the electric field within the rectifier, supporting the combination of forward-voltage, leakage and robustness characteristics offered by the family.
Designed for Automotive Power Circuits
The four rectifiers are qualified to AEC-Q101 and manufactured in IATF 16949-certified facilities for automotive applications.
Package options vary according to the current rating and intended implementation. The new devices are available in the PowerDI123, PowerDI5 and SMAF package formats, giving designers options for different PCB footprints and power requirements.
One application highlighted by Diodes uses the 2 A SBRFP2M60P1Q as the rectifier in an automotive LED DC-DC converter. The devices can also be used in power conversion, reverse-polarity protection and other automotive circuits requiring a 60 V rectifier.
All four 60 V SBR devices are available now.
Learn more and read the original announcement at diodes.com.
Technology Overview
The SBRFP2M60P1Q, SBRFP2M60SAFQ, SBRFP3M60SAFQ and SBRFP8A60P5Q are 60 V automotive Super Barrier Rectifiers from Diodes Incorporated. The field-plated devices cover current ratings from 2 A to 8 A, with options optimized for low forward voltage or low reverse leakage. They also provide repetitive avalanche capability and fast reverse recovery for automotive power applications.
FAQs
What is the difference between the four new Diodes rectifiers?
The devices offer different current ratings and electrical characteristics. Some are optimized for low forward voltage, while others target low reverse leakage, allowing designers to select according to the requirements of the power circuit.
What forward voltage do the new rectifiers provide?
The 2 A SBRFP2M60P1Q has a maximum forward voltage of 0.58 V, while the 8 A SBRFP8A60P5Q is specified at a maximum of 0.55 V.
Where can the new SBR devices be used?
Diodes targets automotive power applications including LED lighting, DC-DC conversion and reverse-polarity protection.
