Infineon’s 1ED301xMC12I Drivers Ease The Shift Toward High Speed SiC Switching

Designers moving from silicon switches to SiC often run into the same bottleneck. Existing optocoupler based interfaces do not support the timing accuracy or dv dt immunity that SiC requires, yet many control architectures cannot be redesigned without major cost. Infineon addresses that gap with the EiceDRIVER™ 1ED301xMC12I product family, a group of isolated gate drivers that behave like optocouplers at the input while delivering the precision and robustness of a modern high speed driver stage.

Opto Compatible Inputs For SiC Level Behavior

A common challenge when upgrading to SiC is the control interface that sits between the MCU and the power stage. Optocouplers have been widely used for years, but their aging behavior, slow propagation and wide timing spread become real problems once switching speeds increase. The 1ED301xMC12I devices retain the two pin opto input model so existing control boards can stay unchanged. At the same time they raise the common mode transient immunity above 300 kV per microsecond, which is essential for SiC switching edges that move far faster than traditional IGBTs. The result is an interface that looks familiar but supports voltage transitions that would overwhelm older isolation components.

Timing Accuracy For Parallel Switch Configurations

One detail worth noting is the timing performance. Propagation delay sits around 40 nanoseconds and timing matching between units stays below 10 nanoseconds. That level of consistency matters when several switches operate in parallel, since uneven turn on or turn off behavior can push individual MOSFETs outside their safe limits. The pure PMOS sourcing stage also helps maintain a solid turn on path, which supports fast transitions without needing elaborate gate shaping. For engineers working with power modules or multi switch arrays, these drivers reduce the risk of current imbalance when pushing SiC toward its higher switching speeds.

Isolation Strength And Package Considerations

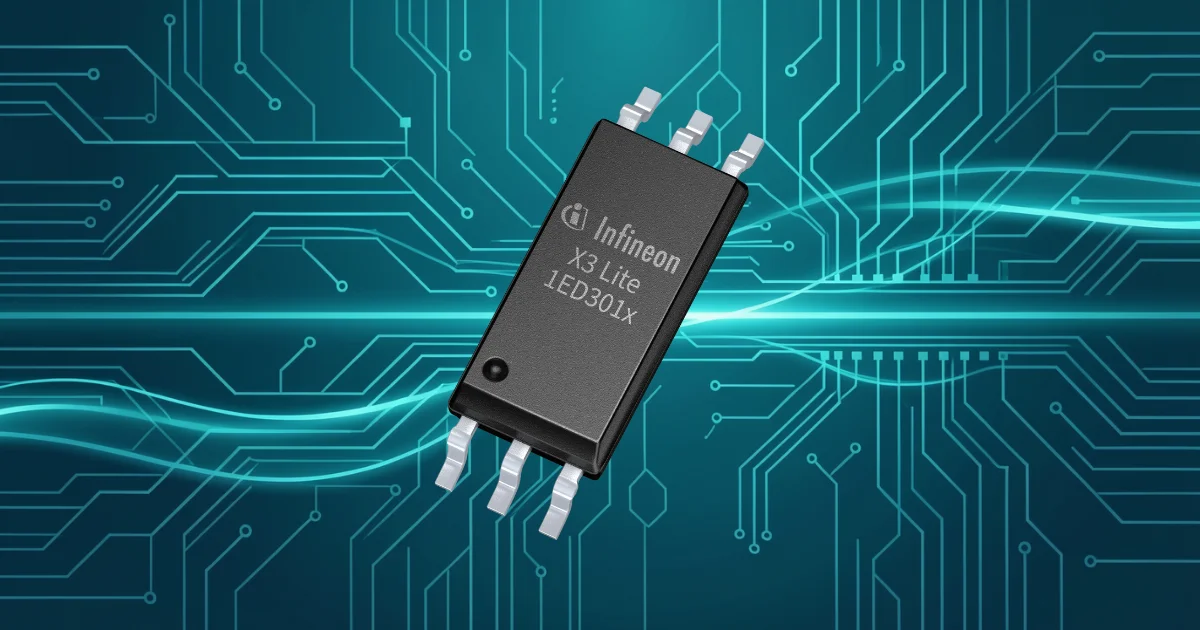

The family uses a CTI 600 rated 6 pin DSO package with more than 8 millimeters of creepage and clearance. For real systems, this footprint often aligns with boards that were originally designed for optocouplers, making replacement straightforward. The insulation is certified to UL 1577 and is moving through IEC 60747 17 certification. This combination helps maintain safety margins in motor drives, solar inverters and energy storage systems where reinforced isolation is a baseline requirement rather than a design option. For engineers, the takeaway is that the devices fit environments where insulation performance must be proven, not assumed.

Variants Built For Different Switch Types

The family includes three versions. The 1ED3010MC12I targets Si MOSFETs and IGBTs, the 1ED3011MC12I and 1ED3012MC12I address SiC MOSFETs and more demanding gate charge profiles. All deliver up to 6.5 amps of output current, which is enough to drive the gates of large discrete devices and many compact power modules. In practice, the current capability allows designers to keep switching speeds high without resorting to external buffer stages. This keeps the gate loop simpler and more predictable when pushing hard switching topologies.

Integration Into Future SiC Power Systems

As SiC adoption accelerates across automotive chargers, renewable energy platforms and motor drives, the need for predictable and noise tolerant gate control becomes more significant. The 1ED301xMC12I family creates a path for upgrading those systems without redesigning the digital control interface. The evaluation board that pairs the drivers with Infineon switches also shortens early development cycles, which helps teams migrate existing platforms toward higher switching frequencies and better efficiency without delaying project schedules.
